Applications
Ideal for hazard marking, aquaculture, navigation, perimeter lighting & a host of other applications.
Main functions and features
• Based on LED technology, and its color complies to IALA Recommendations E-200-1.
• Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
• PC housing，UV resistance, shockproof and corrosion proof.
• With birds pike.
• 256 kinds of flashing rate are available, comply with IALA.
• Intensity can be adjusted from 25%, 50%, 75% and 100% of total intensity.
• With photocell, and manual switch.
• With Steel wire to prevent falling during mounting and adjusting.
• With built in NiMH battery, easy for replace.
• No RF-radiations, EMC Compliant.
• Extremely Reliable and cost saving.
Speficiations
Light Characteristics
Intensity 10cd
Visible Range >2 .5nm
Available colors Red, amber, green, blue, white
Vertical degree >9 °
Horizontal degree 360 °
Light source High Power LED
LED life ≥100,000 hrs
Electrical Characteristics
Autonomy >20 days（12hour darkness，12.5% duty cycle）
On/off level 300 lux±100lux
Flashing rate Complies to IALA Recommendations, total 256 available flashing rate(available steady burning)
Power Supply
Solar module type Multicrystalline
Output 1.8 Watts
Battery type High grade NiMH-Environment friendly
Battery capacity 3.6V/8 AH
Physical Characteristics
Integrated housing UV resistance PC
Waterproof IP68
Weight 1.7 KG
Ambient temperature -30℃ ~ +70℃

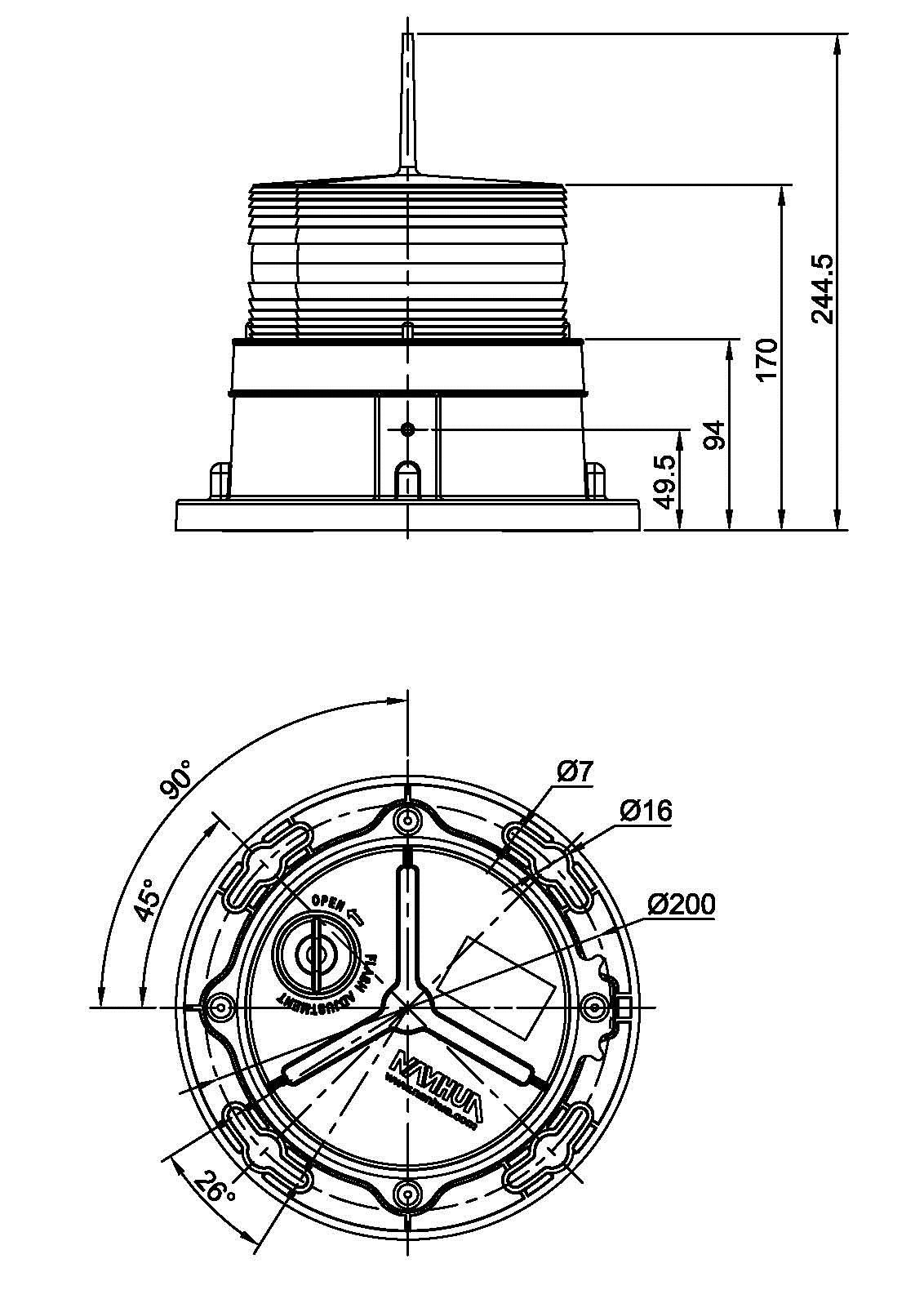

Size H: 170mm, D: 228mm
Mounting dimension Ф200-4XM6
Customized External power or Infrared control
