LED High Bay Lights
LED industrial lighting uses LED (light-emitting-diode) as light sources. LED High Bay Light is solid state lighting. These solid state devices have no moving parts, no fragile glass environments, no UV, no IR, no mercury, no toxic gasses, and no filament. There is nothing to break, rupture, shatter, leak, or contaminate.
In industrial lighting applications where large areas need to be lit for extended periods during the day and overnight, lighting can prove to be a huge proportion of energy consumption. These costs can also be reduced with the installation of high power LED High Bay Light.
Whether you’re looking for best lights or lamps for use, you’ll find the LED solution for your needs at TQ LEDS. We offer wide range of quality and latest technology advancement LED products for all your applications use. Choose LED lighting products from "TQ LEDS" now and experience the future of LED lights and delights!
Applications:

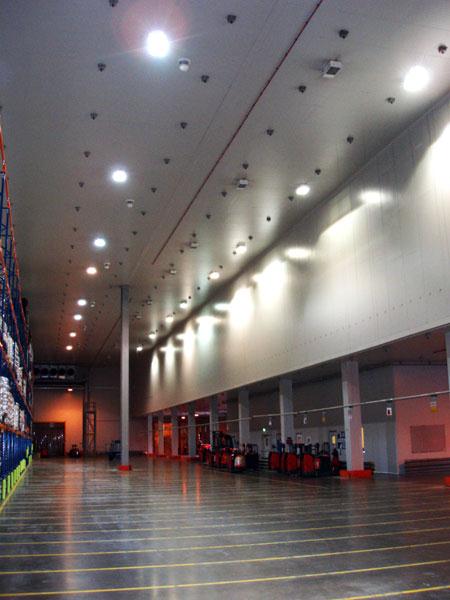

Workshops, Factories, Warehouses, Toll stations, Petrol stations, Supermarkets, Exhibition Halls, Convention Halls, Stadiums, Heavy and Light Industries, etc.
-
Characteristics: TQ-SPG-90W LED High Bay Light
- Lightweight aluminium structure coated to withstand the elements, from extreme cold and heat to high humidity
- Our products come with the latest, most advanced and quality assured LED Technology that combine styling looks, maintenance free and safety.
- Start quickly, high light efficiency, clear eye-sight. No flicker. Operate safely. No damages to eyes and skin
- It can save 65 percent energy of the high voltage sodium lamp at the same intensity
- Easier to be installed and used
- High stability and low light pollution, LED has a high stability, and it is a real environmentally friendly and energy saving product
Main Technology Index:
Learn MoreProduct Name
LED High Bay Light (USA Technology)
Model No.
TQ-SH90
Replacement
300W - 450W for Traditional Lamp Lights
LED Light Source
CREE XP-E
LED Quantity
36 PCS
LED Luminous Efficiency
107-122lm/w
Lamp Total Power
90W
Power Efficiency
86%
Lamp Total Flux
5800 lm
lllumination and Effective Area
lllumination
Effective Area
Height 5M
25 lux
⊙ 8m Circle
Height 6M
21 lux
⊙ 9.5m Circle
Height 7M
19 lux
⊙ 11m Circle
Height 8M
17 lux
⊙ 12.5m Circle
Color Rendering Index(CRI)
Ra≥ 75
Color Temperature(CCT)
2700 - 3500K;
4000 - 5000K;
5000 - 6300KBeam Angle
80 degrees
Light Distribution/Beam Pattern
Round Beam
Input Voltage
100-240 V AC
Frequency
47-63Hz
Power Factor(PF)
≥ 0.95
Total Harmonic Distortion(THD)
≤ 15%
Storage Temperature
－40℃--+80℃
Working Environment
－40℃--+50℃; 10%-90%RH
Working Lifetime
> 50,000 hours
IP Rating
IP44
Lamp Body Material
Aluminum 6063
Net Weight
4.7kg
Gross Weight
7.0kg
Product Dimension(mm)
￠319 x H392 mm
Package Size(mm)
L466 x W412 x H420 mm
-
Characteristics: TQ-SPG-120W LED High Bay Light
- Lightweight aluminium structure coated to withstand the elements, from extreme cold and heat to high humidity
- Our products come with the latest, most advanced and quality assured LED Technology that combine styling looks, maintenance free and safety.
- Start quickly, high light efficiency, clear eye-sight. No flicker. Operate safely. No damages to eyes and skin
- It can save 65 percent energy of the high voltage sodium lamp at the same intensity
- Easier to be installed and used
- High stability and low light pollution, LED has a high stability, and it is a real environmentally friendly and energy saving product
Main Technology Index: (USA Technology)
Learn MoreProduct Name
LED High Bay Light (USA Technology)
Model No.
TQ-SH120
LED Light Source
CREE XP-E
Replacement
350W - 600W for Traditional Lamp Lights
LED Quantity
45 PCS
LED Luminous Efficiency
107-122lm/w
Lamp Total Power
120W
Power Efficiency
86%
Lamp Total Flux
8000 lm
lllumination and Effective Area
lllumination
Effective Area
Height 5M
61 lux
⊙ 8m Circle
Height 6M
53 lux
⊙ 9.5m Circle
Height 7M
40 lux
⊙ 11m Circle
Height 8M
29 lux
⊙ 12.5m Circle
Color Rendering Index(CRI)
Ra≥ 75
Color Temperature(CCT)
2700 - 3500K;
4000 - 5000K;
5000 - 6300KBeam Angle
80 degrees
Light Distribution/Beam Pattern
Round Beam
Input Voltage
100-240 V AC
Frequency
47-63Hz
Power Factor(PF)
≥ 0.95
Total Harmonic Distortion(THD)
≤ 15%
Storage Temperature
－40℃--+80℃
Working Environment
－40℃--+50℃; 10%-90%RH
Working Lifetime
> 50,000 hours
IP Rating
IP44
Lamp Body Material
Aluminum 6063
Net Weight
4.7kg
Gross Weight
7.0kg
Product Dimension(mm)
￠319 x H392 mm
Package Size(mm)
L466 x W412 x H420 mm
-
Characteristics: TQ-SPG-D120W LED High Bay Light
- Lightweight aluminium structure coated to withstand the elements, from extreme cold and heat to high humidity
- Our products come with the latest, most advanced and quality assured LED Technology that combine styling looks, maintenance free and safety.
- Start quickly, high light efficiency, clear eye-sight. No flicker. Operate safely. No damages to eyes and skin
- It can save 65 percent energy of the high voltage sodium lamp at the same intensity
- Easier to be installed and used
- High stability and low light pollution, LED has a high stability, and it is a real environmentally friendly and energy saving product
Main Technology Index: (USA Technology)
Learn MoreProduct Name
LED High Bay Light
Model No.
TQ-SPG-D120W
Replacement
350W - 600W for Traditional Conventional Lights
LED Light Source
CREE XP-E 114 ~ 122 lm
LED Quantity
45 PCS
LED Luminous Efficiency
114 - 122 lm/w
Lamp Total Power
120W
Power Efficiency
86%
Lamp Total Flux
>8000 lm
lllumination and Effective Area
lllumination
Effective Area
Height 5M
85 lux
⊙ 9.5m Circle
Height 6M
49 lux
⊙ 12.5m Circle
Height 7M
30 lux
⊙ 16m Circle
Height 8M
22 lux
⊙ 19m Circle
Color Rendering Index(CRI)
Ra≥ 75
Color Temperature(CCT)
2600 - 3700K;
3700 - 5000K;
5000 - 6300KBeam Angle
80 degrees
Light Distribution/Beam Pattern
Round Beam
Input Voltage
100-240 V AC
Frequency
47-63Hz
Power Factor(PF)
≥ 0.95
Total Harmonic Distortion(THD)
≤ 15%
Storage Temperature
－40℃--+80℃
Working Environment
－40℃--+50℃; 10% - 90%RH
Working Lifetime
> 50,000 hours
IP Rating
IP44
Lamp Body Material
Aluminum 6063
Net Weight
4.7 kg
Gross Weight
6.4 kg
Product Dimension(mm)
￠498 x H300 mm
Package Size(mm)
L612 x W371 x H618 mm
