LED Milky Downlights SP Series
-
Specifications:
Model No:
TQ-SP035D-8W 3.5-Inch LED Dimmable Down Lights
LED Power:
8W
LED Light Source:
CREE-XPE (USA Technology)
Color Temperature:
Warm White: 3000K / Pure White: 4000K / Cool White: 6000K
Luminous Flux (lm)
338lm / 416lm / 443lm
Viewing Angle:
15º or 30º
Dimmable Function:
Yes
Product Dimension: (mm)
3.5 inch; @193 x 193 x 83mm, Installation Hole (mm): 115mm
Input Voltage:
AC100 – 240V
LED Lifespan:
50000 Hours
Material
Aluminum
Working Temperature: (C)
-20C to +40C
Certifications
RoHS, CE
-
Specifications:
Model No:
TQ-SP060-12W 6-Inch LED Downlight
LED Power:
12W
LED Light Source:
High Power EpistarColor Temperature:
Warm White: 3000K / Pure White: 4000K / Cool White: 6000K
Luminous Flux (lm)
765lm / 920lm / 985lm
Dimmable Function:
Yes
Product Dimension: (mm)
6 inch; @236 x 215 x 125mm, Installation Hole (mm): 160-172mm
Input Voltage:
AC100 – 240V
LED Lifespan:
50000 Hours
Viewing Angle:
90ºMaterial
Aluminum
Working Temperature: (C)
-20C to +40C
Certifications
RoHS, CE
-
Specifications:
Model No:
TQ-SP060-18W 6-Inch LED Downlight
LED Power:
18W
LED Light Source:
High Power EpistarColor Temperature:
Warm White: 3000K / Pure White: 4000K / Cool White: 6000K
Luminous Flux (lm)
992lm / 1281lm / 1389lm
Dimmable Function:
Yes
Product Dimension: (mm)
6 inch; @236 x 215 x 125mm, Installation Hole (mm): 160-172mm
Input Voltage:
AC100 – 240V
LED Lifespan:
50000 Hours
Viewing Angle:
90ºMaterial
Aluminum
Working Temperature: (C)
-20C to +40C
Certifications
RoHS, CE
-
Specifications:
Model No:
TQ-SP100-18W 10-Inch LED Downlight
LED Power:
18W
LED Light Source:
High Power EpistarColor Temperature:
Warm White: 3000K / Pure White: 4000K / Cool White: 6000K
Luminous Flux (lm)
992lm / 1281lm / 1389lm
Dimmable Function:
Yes
Product Dimension: (mm)
10 inch; @168 x 168 x 80mm, Installation Hole (mm): 245mm
Input Voltage:
AC100 – 240V
LED Lifespan:
50000 Hours
Viewing Angle:
95ºMaterial
Aluminum
Working Temperature: (C)
-20C to +40C
Certifications
RoHS, CE
-
Specifications:
Model No:
TQ-SP100-29W 10-Inch LED Downlight
LED Power:
29W
LED Light Source:
High Power EpistarColor Temperature:
Warm White: 3000K / Pure White: 4000K / Cool White: 6000K
Luminous Flux (lm)
1718lm / 1838lm / 1990lm
Dimmable Function:
Yes
Product Dimension: (mm)
10 inch; @168 x 168 x 80mm, Installation Hole (mm): 245mm
Input Voltage:
AC100 – 240V
LED Lifespan:
50000 Hours
Viewing Angle:
95ºMaterial
Aluminum
Working Temperature: (C)
-20C to +40C
Certifications
RoHS, CE
-
Specifications:
Model No:
TQ-SP025D-6W 2.5-Inch LED Down Lights
LED Power:
6W
LED Light Source:
High Power Epistar
Color Temperature:
Warm White: 3000K / Pure White: 4000K / Cool White: 6000K
Luminous Flux (lm)
321lm / 389lm / 412lm
Viewing Angle:
90º
Dimmable Function:
No
Product Dimension: (mm)
2.5 inch; @85 x 85 x 95mm, Installation Hole (mm): 80mm
Input Voltage:
AC100 – 240V
LED Lifespan:
50000 Hours
Material
Aluminum
Working Temperature: (C)
-20C to +40C
Certifications
RoHS, CE
-
Illumination design affect commercial atmosphere hugely, it’s the collection of architecture, physiology, optical, aesthetic and various, ever-changing technique of expression. Not only required ample luminance but also strong artistry to create better lighting effect atmosphere.
- Integration design, directly replace traditional light
- Use high quality original Cree LED, low power consumption, no pollution and long life
- Instant star, no noise, no flickering and work steadily
- Wide input voltage range, AC 85-300V, isolated power supply, constant current drive, pollution free, stable performance, safe and reliable

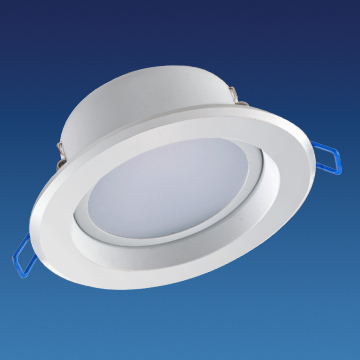

TQ LED Down Light is high-grade indoor lighting for lumination and decoration, using Cree LED as light source. With aluminum alloy body case made by precise CNC machines, soft light and uniform illuminance, TQ LED Down Light with dimming function is best green light option for home and commercial lighting application.
Specifications:
Model No:
TQ-SP025D-9W 2.5-Inch LED Down Lights
LED Power:
9W
LED Light Source:
High Power Epistar
Color Temperature:
Warm White: 3000K / Pure White: 4000K / Cool White: 6000K
Luminous Flux (lm)
481lm / 583lm / 618lm
Viewing Angle:
90º
Dimmable Function:
No
Product Dimension: (mm)
2.5 inch; @85 x 85 x 95mm, Installation Hole (mm): 80mm
Input Voltage:
AC100 – 240V
LED Lifespan:
50000 Hours
Material
Aluminum
Working Temperature: (C)
-20C to +40C
Certifications
RoHS, CE
-
Specifications:
Model No:
TQ-SP025D-6W 2.5-Inch LED Down Lights
LED Power:
6W
LED Light Source:
CREE-XPE (USA Technology)
Color Temperature:
Warm White: 3000K / Pure White: 4000K / Cool White: 6000K
Luminous Flux (lm)
317lm / 381lm / 429lm
Viewing Angle:
15º or 30º
Dimmable Function:
No
Product Dimension: (mm)
2.5 inch; @85 x 85 x 95mm, Installation Hole (mm): 80mm
Input Voltage:
AC100 – 240V
LED Lifespan:
50000 Hours
Material
Aluminum
Working Temperature: (C)
-20C to +40C
Certifications
RoHS, CE
-
Specifications:
Model No:
TQ-SP030D-6W 2.5-Inch LED Down Lights
LED Power:
6W
LED Light Source:
High Power Epistar
Color Temperature:
Warm White: 3000K / Pure White: 4000K / Cool White: 6000K
Luminous Flux (lm)
308lm / 389lm / 395lm
Viewing Angle:
90º
Dimmable Function:
No
Product Dimension: (mm)
3 inch; @120 x 120 x 65mm, Installation Hole (mm): 95mm
Input Voltage:
AC100 – 240V
LED Lifespan:
50000 Hours
Material
Aluminum
Working Temperature: (C)
-20C to +40C
Certifications
RoHS, CE
-
Specifications:
Model No:
TQ-SP030D-9W 2.5-Inch LED Down Lights
LED Power:
9W
LED Light Source:
High Power Epistar
Color Temperature:
Warm White: 3000K / Pure White: 4000K / Cool White: 6000K
Luminous Flux (lm)
462lm / 583lm / 593lm
Viewing Angle:
90º
Dimmable Function:
No
Product Dimension: (mm)
3 inch; @120 x 120 x 65mm, Installation Hole (mm): 95mm
Input Voltage:
AC100 – 240V
LED Lifespan:
50000 Hours
Material
Aluminum
Working Temperature: (C)
-20C to +40C
Certifications
RoHS, CE
