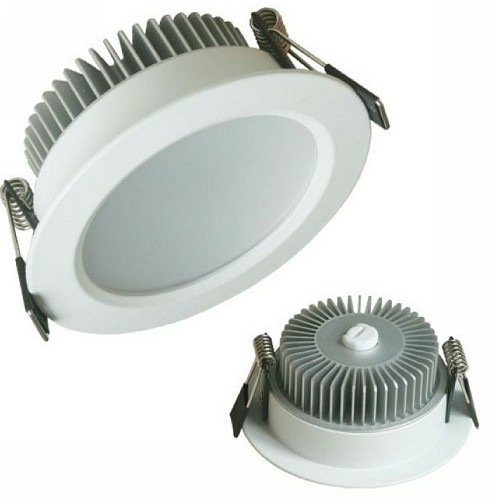

LED Downlight W Series

LED Power (w)

3W

Type of LED Chip

High Power SMD5730

Input Voltage

Lumen (lm)

240lm - 270lm

Beam Angel

120°

CCT

Warm White / Cool White / White or others

Outsize( Dia.*H)

Dia.Ф90x45 mm

Cutsize (Dia.*H)

Dia.80mm

Material

Aluminum + Acrylic Cover

LED Power (w)

5W

Type of LED Chip

High Power SMD5730

Input Voltage

Lumen (lm)

380lm - 400lm

Beam Angel

120°

CCT

Warm White / Cool White / White or others

Outsize( Dia.*H)

Dia.Ф90x45 mm

Cutsize (Dia.*H)

Dia.80mm

Material

Aluminum + Acrylic Cover

LED Power (w)

7W

Type of LED Chip

High Power SMD5730

Input Voltage

Lumen (lm)

560lm - 600lm

Beam Angel

120°

CCT

Warm White / Cool White / White or others

Outsize( Dia.*H)

Dia.Ф110x50 mm

Cutsize (Dia.*H)

Dia.95mm

Material

Aluminum + Acrylic Cover

LED Power (w)

9W

Type of LED Chip

High Power SMD5730

Input Voltage

Lumen (lm)

760lm - 800lm

Beam Angel

120°

CCT

Warm White / Cool White / White or others

Outsize( Dia.*H)

Dia.Ф115x50 mm

Cutsize (Dia.*H)

Dia.100mm

Material

Aluminum + Acrylic Cover

LED Power (w)

12W

Type of LED Chip

High Power SMD5730

Input Voltage

Lumen (lm)

960lm - 1000lm

Beam Angel

120°

CCT

Warm White / Cool White / White or others

Outsize( Dia.*H)

Dia.Ф140x55 mm

Cutsize (Dia.*H)

Dia.120mm

Material

Aluminum + Acrylic Cover

LED Power (w)

15W

Type of LED Chip

High Power SMD5730

Input Voltage

Lumen (lm)

1300lm - 1350lm

Beam Angel

120°

CCT

Warm White / Cool White / White or others

Outsize( Dia.*H)

Dia.Ф160x60 mm

Cutsize (Dia.*H)

Dia.140mm

Material

Aluminum + Acrylic Cover

LED Power (w)

18W

Type of LED Chip

High Power SMD5730

Input Voltage

Lumen (lm)

1550lm - 1650lm

Beam Angel

120°

CCT

Warm White / Cool White / White or others

Outsize( Dia.*H)

Dia.Ф180x67 mm

Cutsize (Dia.*H)

Dia.165mm

Material

Aluminum + Acrylic Cover
