100% Explosion Proof LED Street Light, Flood Light, Work Light, T8 and LED High Bay Light with Explosion Mark annd Corrosion-proof Grade Certified (USA Technology)

100% Explosion Proof LED Street Light, Flood Light, Work Light, T8 and LED High Bay Light with Explosion Mark annd Corrosion-proof Grade Certified (USA Technology)

Features: (1) High efficient LED module is adopted as light source and most advanced electrical technology is applied. This enables low power consumption, efficient light-emitting and instant lighting at the same time. (2) The light has unique structure; simple and compact but ideal for heat diffusion (patented), tight enough for sealing (waterproof and dust prevention of IP66) and tough against shocks and corrosions. This assures long service life of the light. (3) By unique optical design, light irradiation range is wide and illumination intensity is high. (4) There are various mounting options and mounting is very easy. Applications: Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base,etc. Zone I and Zone Ⅱ Hazardous Locations, Zone 20, Zone 21, Zone 22 and Ⅱ A, Ⅱ B, Ⅱ C explosive gas atmosphere as street lighting. 1. Applied to high way, main road, minor road, city streets, pavement, squares, schools, parks, yards, residential areas, factories, oil fields, oil refineries, power plants, gas stations, and other places where light is needed.

Set Descending Direction

10 Item(s)

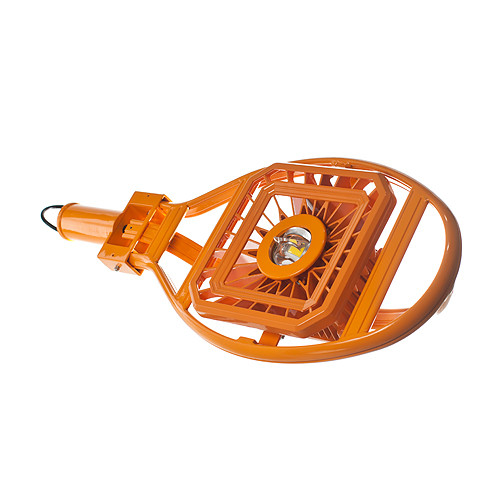

  1. TQ-EPL03-F2-160W & 200W & 240W  LED Certified Explosion Proof Street Light 160W / 200W / 240W (USA Technology)

    1.  Main Features

    1. 95-265V alternating current and 24V direct current for option;

    2. Die casting aluminum housing, with anti-static and anti-corrosion coating, high explosion-proof degree of flameproof type; dust-proof, waterproof; it can safely worked in explosive environment, moist environment, acid-base environment.

    3. Light source adopt famous brand chip encapsulation, light degradation is less than 30% after light up 50,000 hours.

    4. Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.

    5.  Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality for standard requirement of street light

    6. Patented appearance design, beautiful appearance with simple structure, it can be used as solar led street light when working at 24V DC.



    Technical Parameters

    Parameter

    Value

    LED Power Available (watt)

    160W / 200W / 240W

    Input Voltage

    220V AC(applied for 95-265V)/ 24V DC

    Frequency

    50Hz(applied for 47-63 Hz)

    Beam Angle

    Transverse:140°    longitudinal:60°

    Explosion-proof Grade

    Ex dⅡB T5, DIP A20 TA, T5

    Corrosion-proof Grade

    WF2

    IP Grade

    IP66

    Power Factor

    >0.95

    Lamp Efficiency(%)

    ≥90%

    Color Temperature(K)

    Warm White:2700-4000K;Pure White:5000-6500K

    Junction Temperature(TJ))

    <65℃

    Color Rendering Index(CRI)

    Ra﹥70

    Light Effect

    ﹥80lm/W

    Ambient Environment

    Temperature:-30℃—55℃;Humidity:10-90%RH(25℃)

    Storage Temperature

    -40℃-60℃

    Lifespan

    ﹥50000Hs

    Material

    Aluminum Alloy

    Pole Diameter

    Φ48mm、Φ60mm

    Installation Height

    6m~20m



     Applications

    Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base,etc. Zone I and Zone ⅡHazardous Locations, Zone 20, Zone 21, Zone 22 and Ⅱ A, Ⅱ B, Ⅱ C explosive gas atmosphere as street lighting.



    1.  Applied to high way, main road, minor road, city streets, pavement, squares, schools, parks, yards, residential areas, factories, oil fields, oil refineries, power plants, gas stations, and other places where light is needed.

    The light can be used at ease in the following places:

    1.  Places where ambient temperature is between -50℃ and 40℃
    2.  Places below 2000m high
    3.  Places where relative humidity is less than 90% (at 25℃)



    2. Characteristics of Product

    (a)  High efficient LED module is adopted as light source and most advanced electrical technology is applied. This enables low power consumption, efficient light-emitting and instant lighting at the same time.

    (b)  The light has unique structure; simple and compact but ideal for heat diffusion (patented), tight enough for sealing (waterproof and dust prevention of IP66) and tough against shocks and corrosions. This assures long service life of the light.

    (c)  By unique optical design, light irradiation range is wide and illumination intensity is high.

    (d)  There are various mounting options and mounting is very easy.



    3. Main specifications

    No.

    Items

    Unit

    Specifications

    1

    Rated voltage

    V

    AC 90~305

    2

    Rated frequency

    Hz

    47–63

    3

    Ex Mark



    Exd Ⅱ B T5 /  DIP A20 TA, T5

    4

    LED Power consumption

    W

    160W/200W/240W

    5

    Lifespan

    h

    ≧50000

    6

    Efficiency of light

    %

    85

    7

    Protection Code



    IP66

    8

    Corrosion-proof Grade



    WF2

    9

    Power cable

    mm

    Φ8

    10

    External dimensions

    mm

                                L1205*W380*H225                                 (For 160W /  200W / 240W)

    11

    Weight

       kg

    18.5



    4. How to mount and use

    (1) Fix with ф60mm pole.

     (2) After having fixed the light, connect cable of the light with cable from AC power source. 0.5m long triple core cable of 10mm diameter is equipped with the light. There are triple core lines in the cable of the light and markings on the lines, indicating live line (L), neutral line (N) and ground line (E). Connect each line rightly with line in the cable from the AC power source, respectively.

    (3) Switch on the light. It will shine instantly.



    5. Attentions

    (1) Before mounting and use of the light, read through this Instructions and check whether voltage of power source conforms to that required for the light. If not, it may cause breakdown of the light .

    (2) Make surface of the light case and lens clean to ensure light transmittance and heat diffusion.

    (3) Be careful not to have the light case contacted to hard materials in order to avoid scratches.

    (4) Do not let amateur mount the light.

    (5) Never neglect to ground the light. It is important to ensure security of power source and protection from lightening surge of the light.

    (6) Ambient temperature for the light should be in the range from -50℃ to 40℃. When it exceeds 40℃, make forceful ventilation to accelerate heat diffusion.

    (7) Repairs and maintenance

    i)       Check periodically elasticity of sealing materials. In case they lose elasticity due to aging, replace them with those of exactly same specifications (both size and hardness). Alternative materials may not be used.

    ii)      Conduct periodically insulation resistance test with 500V Megger so that insulation resistance does not get lower than 2MΩ.

    iii)     In maintenance work, take care of the surface of flameproof enclosures. As the surface may not have damages and corrosion, it was coated with rust-proof oil 204-1 in assembly. Do not soil the surface or damage the sealed part.

    (8) Safety cautions

    In all repairs, maintenance and other works, it is required to cut off power before the works.



    6. Trouble shouting

    Trouble

    Caused

    Treatment

    Light does not shine.

    Light source is broken.

    Replace the light source.

    Cable is not in good order.

    Check the cable.

    Light flickers.

    Voltage is too low.

    Check the voltage.

    Learn More
  2. TQ-EPLA01-12W   LED Certified Explosion Proof Work Lights 12W  (USA Technology)

    Features:

    1. Increased safety type of explosion proof grade, AC95-265V input alternating current and DC12v direct current for option ;

    2. Integrated type of tube, adopt SMD LED on aluminum base, make aluminum base completely attached to heat sink which composed of lamp body to make sure excellent heat dissipation, lead to long lifetime.

    3. Adopt silicon encapsulated sealed power supply whose body made of aluminum alloy, put it inside of aluminum body and closed attached to heat sink to make sure heat dissipated from power supply.

    4. Cover made of high quality PC which enjoy high-strength, impact resistant, hot resistant, corrosion-resistant.

    5. Completely sealed to waterproof, dust-proof, corrosion-resistant.

    6. Smart appearance, equip with two mounting brackets,it can be installed easily.



    Technical Parameters



    LED Power

    12W

    LED Light Source

    CREE USA Chip Technology

    Lighting Types available

    Strong Light, Working Light , Flashing Light and Signal SOS Light

    Battery Type

    Lithium for Recharge

    Continuousely Working

    >19 hours

    Input Voltage

    AC 90-265V /  DC12v

    Frequency

    50Hz/60Hz

    Explosion-proof Grade

    Ex s II C T6 / DIP A20 TA,  T6

    Corrosion-proof Grade

    WF2

    IP Grade

    IP68

    Light Efficiency

    ≥110lm/W

    Power Factor

    ≥0.90

    Product Dimension (mm)

    Φ170*70*105mm

    Storage Temperature

    -40°C-60°C

    Lifespan

    ﹥50000Hs

    Material

    Aluminum  body

    Net Weight

    1.13Kg

    Learn More
  3. TQ-FL01-3W   LED Certified Explosion Proof Work Lights 3W  (USA Technology)

    Features:

    1. Increased safety type of explosion proof grade, AC95-265V input alternating current and DC12v direct current for option;

    2. Integrated type of tube, adopt SMD LED on aluminum base, make aluminum base completely attached to heat sink which composed of lamp body to make sure excellent heat dissipation, lead to long lifetime.

    3. Adopt silicon encapsulated sealed power supply whose body made of aluminum alloy, put it inside of aluminum body and closed attached to heat sink to make sure heat dissipated from power supply.

    4. Cover made of high quality PC which enjoy high-strength, impact resistant, hot resistant, corrosion-resistant.

    5. Completely sealed to waterproof, dust-proof, corrosion-resistant.

    6. Smart appearance, equip with two mounting brackets,it can be installed easily.



    Technical Parameters



    LED Power

    3W

    LED Light Source

    CREE USA Chip Technology

    Lighting Types available

    Strong Light, Working Light and Flashing Light

    Battery Type

    Lithium for Recharge

    Continuousely Working

    >19 hours

    Input Voltage

    AC 90-265V / DC12v

    Frequency

    50Hz/60Hz

    Explosion-proof Grade

    Ex IC IIC T5 Gc

    Corrosion-proof Grade

    WF2

    IP Grade

    IP66

    Light Efficiency

    ≥110lm/W

    Power Factor

    ≥0.90

    Product Dimension (mm)

    Φ36*160mm

    Storage Temperature

    -40°C-60°C

    Lifespan

    ﹥50000Hs

    Material

    Aluminum  body

    Net Weight

    230g

    Learn More
  4. TQ-EPL08-280W & 320W   LED Certified Explosion Proof High Bay Light  280W / 320W  (USA Technology)

    Features:

    1. Increased safety type of explosion proof grade, 95-265V alternating current and 24V direct current for option;

    2. Integrated type of tube, adopt SMD LED on aluminum base, make aluminum base completely attached to heat sink which composed of lamp body to make sure excellent heat dissipation, lead to long lifetime.

    3. Adopt silicon encapsulated sealed power supply whose body made of aluminum alloy, put it inside of aluminum body and closed attached to heat sink to make sure heat dissipated from power supply.

    4. Cover made of high quality PC which enjoy high-strength, impact resistant, hot resistant, corrosion-resistant.

    5. Completely sealed to waterproof, dust-proof, corrosion-resistant.

    6. Smart appearance, equip with two mounting brackets,it can be installed easily.



    Technical Parameters



    LED Power

    280W

    320W

    LED Light Source

    BridgeLux USA Chip Technology

    Input Voltage

    AC 90-305V

    Frequency

    50Hz/60Hz

    Explosion-proof Grade

    ExdeIICT 4

    Corrosion-proof Grade

    WF1

    IP Grade

    IP66

    Light Effect

    ≥90lm/W

    Beam Angle

    120°

    Power Factor

    ≥0.90

    Product Dimension (mm)

    Φ500mm*450-500mm

    Ambient Environment

    Temperature:-30°C-55°C; Humidity:10-90%RH(25°C)

    Storage Temperature

    -40°C-60°C

    Lifespan

    ﹥50000Hs

    Material

    Aluminum  housing + anti-corrosion painting

    Net Weight

    14Kg

    Learn More
  5. TQ-EPTL01-20W & 40W & 60W   LED Certified Explosion Proof T8 Tube Light  20W / 40W /  60W  (USA Technology)

    Features:

    1. Increased safety type of explosion proof grade, 95-265V alternating current and 24V direct current for option;

    2. Integrated type of tube, adopt SMD LED on aluminum base, make aluminum base completely attached to heat sink which composed of lamp body to make sure excellent heat dissipation, lead to long lifetime.

    3. Adopt silicon encapsulated sealed power supply whose body made of aluminum alloy, put it inside of aluminum body and closed attached to heat sink to make sure heat dissipated from power supply.

    4. Cover made of high quality PC which enjoy high-strength, impact resistant, hot resistant, corrosion-resistant.

    5. Completely sealed to waterproof, dust-proof, corrosion-resistant.

    6. Smart appearance, equip with two mounting brackets,it can be installed easily.



    Technical Parameters



    LED Power

    20W

    40W

    60W

    Input Voltage

    220V AC(applied for 95-265V)

    Frequency

    50Hz/60Hz

    Explosion-proof Grade

    Ex emb IIC T6  / DIP A20 TA,  T6

    Corrosion-proof Grade

    WF2

    IP Grade

    IP66

    Light Effect

    ≥90lm/W

    Beam Angle

    120°

    Power Factor

    ≥0.90

    Cable Entry

    Φ8~Φ10mm

    Installation Height

    2~3m

    3~5m

    3~6m

    Illuminance at 3m

    75LX

    100 LX

    130 LX

    Ambient Environment

    Temperature:-30°C-55°C; Humidity:10-90%RH(25°C)

    Storage Temperature

    -40°C-60°C

    Lifespan

    ﹥50000Hs

    Material

    Aluminum Alloy&PC

    Dimension (20W)

    L850*W136*H91.5mm

    Dimension (40W)

    L1295*W136*H91.5mm

    Dimension (60W)

    L1295*W136*H91.5mm

    Net Weight

    20W: 4.5KG  40W:  6.9KG  and  60W:  6.9Kg



    Learn More
  6. TQ-EPTL03-20W & 40W & 60W   LED Certified Explosion Proof T8 Tube Light  20W / 40W /  60W  (USA Technology)

    Features:

    1. Increased safety type of explosion proof grade, 95-265V alternating current and 24V direct current for option;

    2. Integrated type of tube, adopt SMD LED on aluminum base, make aluminum base completely attached to heat sink which composed of lamp body to make sure excellent heat dissipation, lead to long lifetime.

    3. Adopt silicon encapsulated sealed power supply whose body made of aluminum alloy, put it inside of aluminum body and closed attached to heat sink to make sure heat dissipated from power supply.

    4. Cover made of high quality PC which enjoy high-strength, impact resistant, hot resistant, corrosion-resistant.

    5. Completely sealed to waterproof, dust-proof, corrosion-resistant.

    6. Smart appearance, equip with two mounting brackets,it can be installed easily.



    Technical Parameters



    LED Power

    20W

    40W

    60W

    Input Voltage

    220V AC(applied for 95-265V)

    Frequency

    50Hz/60Hz

    Explosion-proof Grade

    Ex emb IIC T6

    Corrosion-proof Grade

    WF2

    IP Grade

    IP66

    Light Effect

    ≥90lm/W

    Beam Angle

    120°

    Power Factor

    ≥0.90

    Cable Entry

    Φ8~Φ10mm

    Installation Height

    2~3m

    3~5m

    3~6m

    Illuminance at 3m

    75LX

    100 LX

    130 LX

    Ambient Environment

    Temperature:-30°C-55°C; Humidity:10-90%RH(25°C)

    Storage Temperature

    -40°C-60°C

    Lifespan

    ﹥50000Hs

    Material

    Aluminum Alloy&PC

    Dimension (20W)

    L708*W132*H90.5mm

    Dimension (40W)

    L1315*W132*H90.5mm

    Dimension (60W)

    L1315*W132*H82mm

    Net Weight

    20W: 3.0KG  40W:  5.5KG  and  60W:  5.5Kg





    Learn More
  7. TQ-EPL03-60W & 80W & 100W & 1200W LED Certified Explosion Proof Flood Light  60W / 80W / 100W / 120W (USA Technology)

    Features

    1.  Patented design for heat dissipation to ensure life of light source up to 50,000 hours.

    2.  Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.

    3.  Die-casting aluminum housing, with anti-static and anti-corrosion coating, high explosion-proof degree of flameproof type; dust-proof, waterproof; lens made of bulletproof PC which is thermal resistance, corrosion resistance, high light transmission.

    4.  Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image.

    5.  Beautiful appearance, several types of installation methods available.



    Applications

    Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base, etc. Zone I and Zone ⅡHazardous Locations, Zone 20, Zone 21, Zone 22 and Ⅱ A, Ⅱ B, Ⅱ C explosive gas atmosphere.



    Technical Parameters

    Item Name

    LED Explosion Proof Light

    LED Power

    60W / 80W / 100W / 120W

    Input Voltage

    AC 95-265V  or 24V DC

    Frequency

    50Hz (applied for 47-63 Hz)

    Beam Angle

    60°/ 90° / 120° / 140°

    Explosion-proof Grade

    Ex d II B T5,   DIP A20 TA, T6

    Corrosion-proof Grade

    WF2

    IP Grade

    IP66

    Power Factor

    >0.95

    Total Harmonic Current

    <15%

    Lamp Efficiency(%)

    ≥90%

    Color Temperature(K)

    Warm white:2700-4000K; Pure white: 5000-6500K

    Junction Temperature(TJ)

    <65°C

    Color Rendering Index (CRI)

    Ra﹥70

    Light Effect

    ﹥80lm/W

    Ambient Environment

    Temperature: -30°C—55°C; Humidity: 10-90%RH (25°C)

    Storage Temperature

    -40°C-60°C

    Lifespan

    ﹥50000Hs

    Material

    Aluminum Alloy

    Installation Height

    4~10m (flood light) / 10~30m (project light)

    Dimension(mm)

    300×300×227

    Net Weight

    6.5Kg

    Learn More
  8. TQ-EPL05-20W & 30W & 40W & 50W LED Certified Explosion Proof Flood Light  20W / 30W / 40W / 50W (USA Technology)

    Features

    1.  Patented design for heat dissipation to ensure life of light source up to 50,000 hours.

    2.  Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.

    3.  Die-casting aluminum housing, with anti-static and anti-corrosion coating, high explosion-proof degree of flameproof type; dust-proof, waterproof; lens made of bulletproof PC which is thermal resistance, corrosion resistance, high light transmission.

    4.  Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image.

    5.  Beautiful appearance, several types of installation methods available.



    Applications

    Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base, etc. Zone I and Zone ⅡHazardous Locations, Zone 20, Zone 21, Zone 22 and Ⅱ A, Ⅱ B, Ⅱ C explosive gas atmosphere.



    Technical Parameters

    Item Name

    LED Explosion Proof  Flood Light

    LED Power

    20W / 30W / 40W /  50W

    Input Voltage

    AC 95-265V  or 24V DC

    Frequency

    50Hz (applied for 47-63 Hz)

    Beam Angle

    60° / 90° / 120° / 140°

    Explosion-proof Grade

    Ex d II B T6  /  DIP A20 TA, T6

    Corrosion-proof Grade

    WF2

    IP Grade

    IP66

    Power Factor

    >0.95

    Total Harmonic Current

    <15%

    Lamp Efficiency(%)

    ≥90%

    Color Temperature(K)

    Warm white:2700-4000K; Pure white: 5000-6500K

    Junction Temperature(TJ)

    <65°C

    Color Rendering Index (CRI)

    Ra﹥70

    Light Effect

    ﹥80lm/W

    Ambient Environment

    Temperature: -30°C—55°C; Humidity: 10-90%RH (25°C)

    Storage Temperature

    -40°C-60°C

    Lifespan

    ﹥50000Hs

    Material

    Aluminum Alloy

    Installation Height

    4~10m (flood light) / 10~30m (project light)

    Dimension(mm)

    200×220×250

    Net Weight

    4Kg

    Learn More
  9. TQ-EPL03-F1-60W & 80W & 100W & 120W LED Certified Explosion Proof Street Light 60W / 80W / 100W / 120W (USA Technology)

    1.  Main Features

    1. 95-265V alternating current and 24V direct current for option;

    2. Die casting aluminum housing, with anti-static and anti-corrosion coating, high explosion-proof degree of flameproof type; dust-proof, waterproof; it can safely worked in explosive environment, moist environment, acid-base environment.

    3. Light source adopt famous brand chip encapsulation, light degradation is less than 30% after light up 50,000 hours.

    4. Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.

    5.  Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality for standard requirement of street light

    6. Patented appearance design, beautiful appearance with simple structure, it can be used as solar led street light when working at 24V DC.



    Technical Parameters

    Parameter

    Value

    LED Power Available (watt)

    60W / 80W / 100W / 120W

    Input Voltage

    220V AC(applied for 95-265V)/ 24V DC

    Frequency

    50Hz(applied for 47-63 Hz)

    Beam Angle

    Transverse:140°    longitudinal:60°

    Explosion-proof Grade

    Ex dⅡB T5, DIP A20 TA, T5

    Corrosion-proof Grade

    WF2

    IP Grade

    IP66

    Power Factor

    >0.95

    Lamp Efficiency(%)

    ≥90%

    Color Temperature(K)

    Warm White:2700-4000K;Pure White:5000-6500K

    Junction Temperature(TJ))

    <65℃

    Color Rendering Index(CRI)

    Ra﹥70

    Light Effect

    ﹥80lm/W

    Ambient Environment

    Temperature:-30℃—55℃;Humidity:10-90%RH(25℃)

    Storage Temperature

    -40℃-60℃

    Lifespan

    ﹥50000Hs

    Material

    Aluminum Alloy

    Pole Diameter

    Φ48mm、Φ60mm

    Installation Height

    6m~20m



     Applications

    Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base,etc. Zone I and Zone ⅡHazardous Locations, Zone 20, Zone 21, Zone 22 and Ⅱ A, Ⅱ B, Ⅱ C explosive gas atmosphere as street lighting.



    1.  Applied to high way, main road, minor road, city streets, pavement, squares, schools, parks, yards, residential areas, factories, oil fields, oil refineries, power plants, gas stations, and other places where light is needed.

    The light can be used at ease in the following places:

    1.  Places where ambient temperature is between -50℃ and 40℃
    2.  Places below 2000m high
    3.  Places where relative humidity is less than 90% (at 25℃)



    2. Characteristics of Product

    (a)  High efficient LED module is adopted as light source and most advanced electrical technology is applied. This enables low power consumption, efficient light-emitting and instant lighting at the same time.

    (b)  The light has unique structure; simple and compact but ideal for heat diffusion (patented), tight enough for sealing (waterproof and dust prevention of IP66) and tough against shocks and corrosions. This assures long service life of the light.

    (c)  By unique optical design, light irradiation range is wide and illumination intensity is high.

    (d)  There are various mounting options and mounting is very easy.



    3. Main specifications

    No.

    Items

    Unit

    Specifications

    1

    Rated voltage

    V

    AC 90~305

    2

    Rated frequency

    Hz

    47–63

    3

    Ex Mark



    Exd Ⅱ B T5  /  DIP A20 TA, T5

    4

    LED Power consumption

    W

     60W / 80W / 100W / 120W

    5

    Lifespan

    h

    ≧50000

    6

    Efficiency of light

    %

    85

    7

    Protection Code



    IP66

    8

    Corrosion-proof Grade



    WF2

    9

    Power cable

    mm

    Φ8

    10

    External dimensions

    mm

                                L858*W380*H220                                  (For 60W / 100W / 100W / 120W)

    11

    Weight

    kg

    10



    4. How to mount and use

    (1) Fix with ф60mm pole.

     (2) After having fixed the light, connect cable of the light with cable from AC power source. 0.5m long triple core cable of 10mm diameter is equipped with the light. There are triple core lines in the cable of the light and markings on the lines, indicating live line (L), neutral line (N) and ground line (E). Connect each line rightly with line in the cable from the AC power source, respectively.

    (3) Switch on the light. It will shine instantly.



    5. Attentions

    (1) Before mounting and use of the light, read through this Instructions and check whether voltage of power source conforms to that required for the light. If not, it may cause breakdown of the light .

    (2) Make surface of the light case and lens clean to ensure light transmittance and heat diffusion.

    (3) Be careful not to have the light case contacted to hard materials in order to avoid scratches.

    (4) Do not let amateur mount the light.

    (5) Never neglect to ground the light. It is important to ensure security of power source and protection from lightening surge of the light.

    (6) Ambient temperature for the light should be in the range from -50℃ to 40℃. When it exceeds 40℃, make forceful ventilation to accelerate heat diffusion.

    (7) Repairs and maintenance

    i)       Check periodically elasticity of sealing materials. In case they lose elasticity due to aging, replace them with those of exactly same specifications (both size and hardness). Alternative materials may not be used.

    ii)      Conduct periodically insulation resistance test with 500V Megger so that insulation resistance does not get lower than 2MΩ.

    iii)     In maintenance work, take care of the surface of flameproof enclosures. As the surface may not have damages and corrosion, it was coated with rust-proof oil 204-1 in assembly. Do not soil the surface or damage the sealed part.

    (8) Safety cautions

    In all repairs, maintenance and other works, it is required to cut off power before the works.



    6. Trouble shouting

    Trouble

    Caused

    Treatment

    Light does not shine.

    Light source is broken.

    Replace the light source.

    Cable is not in good order.

    Check the cable.

    Light flickers.

    Voltage is too low.

    Check the voltage.

    Learn More
  10. TQ-EPLB01-16W   LED Certified Explosion Proof Work Lights 16W  (USA Technology)

    Features:

    1. Increased safety type of explosion proof grade, AC95-265V input alternating current and DC12v direct current for option;

    2. Integrated type of tube, adopt SMD LED on aluminum base, make aluminum base completely attached to heat sink which composed of lamp body to make sure excellent heat dissipation, lead to long lifetime.

    3. Adopt silicon encapsulated sealed power supply whose body made of aluminum alloy, put it inside of aluminum body and closed attached to heat sink to make sure heat dissipated from power supply.

    4. Cover made of high quality PC which enjoy high-strength, impact resistant, hot resistant, corrosion-resistant.

    5. Completely sealed to waterproof, dust-proof, corrosion-resistant.

    6. Smart appearance, equip with two mounting brackets,it can be installed easily.



    Technical Parameters



    LED Power

    16W

    LED Light Source

    CREE USA Chip Technology

    Lighting Types available

    Strong Light, Working Light , Flashing Light and Signal SOS Light

    Battery Type

    Lithium for Recharge

    Continuousely Working

    >19 hours

    Input Voltage

    AC 90-265V /  DC12v

    Frequency

    50Hz/60Hz

    Explosion-proof Grade

    Ex s II C T6 / DIP A20 TA,  T6

    Corrosion-proof Grade

    WF2

    IP Grade

    IP68

    Light Efficiency

    ≥110lm/W

    Power Factor

    ≥0.90

    Product Dimension (mm)

    Φ285*94*125mm

    Storage Temperature

    -40°C-60°C

    Lifespan

    ﹥50000Hs

    Material

    Aluminum  body

    Net Weight

    2.2Kg

    Learn More

Set Descending Direction

10 Item(s)
