LED Street Light 304 P Series USA Technology - LED Super Bright Street Light, Flood Light, High Bay Light, Wall Washer Light and Solar Street Light

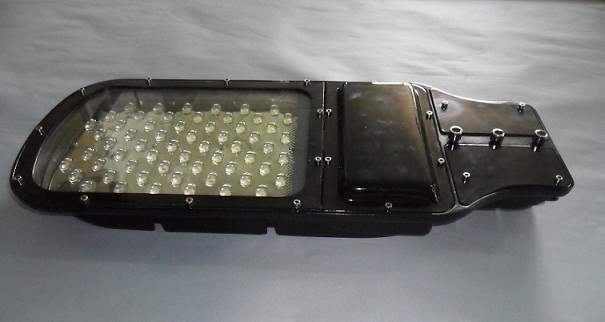

TQ-S304P-180W LED High Power Street Light (USA Technology) 180W

Input voltage			AC85V-265V
Frequency			50HZ-60HZ
Total harmonic distortion			≤9%
Power factor			＞0.98
LED Chip Technology			USA Bridgelux 45Mil High Power Technology Chip
LED Qty and LED Power			180pcs x 1W = 180W
Total power for the light			194W
Luminous Flux			120lm/w - 130LM/W
Light efficiency			>90%
Color rendering index		WW	Ra＞85
		PW，CW	Ra＞78
Light distribution curve			Symmetrical/ rectangle light spot
Light design			LED+ reflector secondary light distribution
Warming node of the led			≤75℃
Operation temperature			-40℃——+50℃
Storage temperature			-25℃——+65℃
Grade of protection			IP65
Lifespan			＞50000H
Connecting wire for the driver	Brown		L live line
	Blue		N neutral line
	Yellow or yellow-green		G earth line
Color for cover of the light socket			Black or Silver
Certifications			CE ; RoHS ; TUV ; EMC ; VOP

Learn More

Input voltage			AC85V-265V
Frequency			50HZ-60HZ
Total harmonic distortion			≤9%
Power factor			＞0.98
LED Chip Technology			USA Bridgelux 45Mil High Power Technology Chip
LED Qty and LED Power			150pcs x 1W = 150W
Luminous Flux			120lm/w - 130LM/W
Light efficiency			>90%
Color rendering index		WW	Ra＞85
		PW，CW	Ra＞78
Light distribution curve			Symmetrical/ rectangle light spot
Light design			LED+ reflector secondary light distribution
Warming node of the led			≤75℃
Operation temperature			-40℃——+50℃
Storage temperature			-25℃——+65℃
Grade of protection			IP65
Lifespan			＞50000H
Connecting wire for the driver	Brown		L live line
	Blue		N neutral line
	Yellow or yellow-green		G earth line
Color for cover of the light socket			Black or Silver
Certifications			CE ; RoHS ; TUV ; EMC ; VOP

Learn More

Input voltage			AC85V-265V
Frequency			50HZ-60HZ
Total harmonic distortion			≤9%
Power factor			＞0.98
LED Chip Technology			USA Bridgelux 45Mil High Power Technology Chip
LED Qty and LED Power			120pcs x 1W = 120W
Luminous Flux			120lm/w - 130LM/W
Light efficiency			>90%
Color rendering index		WW	Ra＞85
		PW，CW	Ra＞78
Light distribution curve			Symmetrical/ rectangle light spot
Light design			LED+ reflector secondary light distribution
Warming node of the led			≤75℃
Operation temperature			-40℃——+50℃
Storage temperature			-25℃——+65℃
Grade of protection			IP65
Lifespan			＞50000H
Connecting wire for the driver	Brown		L live line
	Blue		N neutral line
	Yellow or yellow-green		G earth line
Color for cover of the light socket			Black or Silver
Certifications			CE ; RoHS ; TUV ; EMC ; VOP

Learn More

Input voltage			AC85V-265V
Frequency			50HZ-60HZ
Total harmonic distortion			≤9%
Power factor			＞0.98
LED Chip Technology			USA Bridgelux 45Mil High Power Technology Chip
LED Qty and LED Power			196pcs x 1W = 196W
Luminous Flux			120lm/w - 130LM/W
Light efficiency			>90%
Color rendering index		WW	Ra＞85
		PW，CW	Ra＞78
Light distribution curve			Symmetrical/ rectangle light spot
Light design			LED+ reflector secondary light distribution
Warming node of the led			≤75℃
Operation temperature			-40℃——+50℃
Storage temperature			-25℃——+65℃
Grade of protection			IP65
Lifespan			＞50000H
Connecting wire for the driver	Brown		L live line
	Blue		N neutral line
	Yellow or yellow-green		G earth line
Color for cover of the light socket			Black or Silver
Certifications			CE ; RoHS ; TUV ; EMC ; VOP

Learn More

Input voltage			AC85V-265V
Frequency			50HZ-60HZ
Total harmonic distortion			≤9%
Power factor			＞0.98
LED Chip Technology			USA Bridgelux 45Mil High Power Technology Chip
LED Qty and LED Power			100pcs x 1W = 100W
Luminous Flux			120lm/w - 130LM/W
Light efficiency			>90%
Color rendering index		WW	Ra＞85
		PW，CW	Ra＞78
Light distribution curve			Symmetrical/ rectangle light spot
Light design			LED+ reflector secondary light distribution
Warming node of the led			≤75℃
Operation temperature			-40℃——+50℃
Storage temperature			-25℃——+65℃
Grade of protection			IP65
Lifespan			＞50000H
Connecting wire for the driver	Brown		L live line
	Blue		N neutral line
	Yellow or yellow-green		G earth line
Color for cover of the light socket			Black or Silver
Certifications			CE ; RoHS ; TUV ; EMC ; VOP

Learn More

Input voltage			AC85V-265V
Frequency			50HZ-60HZ
Total harmonic distortion			≤9%
Power factor			＞0.98
LED Chip Technology			USA Bridgelux 45Mil High Power Technology Chip
LED Qty and LED Power			80pcs x 1W = 80W
Luminous Flux			120lm/w - 130LM/W
Light efficiency			>90%
Color rendering index		WW	Ra＞85
		PW，CW	Ra＞78
Light distribution curve			Symmetrical/ rectangle light spot
Light design			LED+ reflector secondary light distribution
Warming node of the led			≤75℃
Operation temperature			-40℃——+50℃
Storage temperature			-25℃——+65℃
Grade of protection			IP65
Lifespan			＞50000H
Connecting wire for the driver	Brown		L live line
	Blue		N neutral line
	Yellow or yellow-green		G earth line
Color for cover of the light socket			Black or Silver
Certifications			CE ; RoHS ; TUV ; EMC ; VOP

Learn More

Input voltage			AC85V-265V
Frequency			50HZ-60HZ
Total harmonic distortion			≤9%
Power factor			＞0.98
LED Chip Technology			USA Bridgelux 45Mil High Power Technology Chip
LED Qty and LED Power			60pcs x 1W = 60W
Luminous Flux			120lm/w - 130LM/W
Light efficiency			>90%
Color rendering index		WW	Ra＞85
		PW，CW	Ra＞78
Light distribution curve			Symmetrical/ rectangle light spot
Light design			LED+ reflector secondary light distribution
Warming node of the led			≤75℃
Operation temperature			-40℃——+50℃
Storage temperature			-25℃——+65℃
Grade of protection			IP65
Lifespan			＞50000H
Connecting wire for the driver	Brown		L live line
	Blue		N neutral line
	Yellow or yellow-green		G earth line
Color for cover of the light socket			Black or Silver
Certifications			CE ; RoHS ; TUV ; EMC ; VOP
