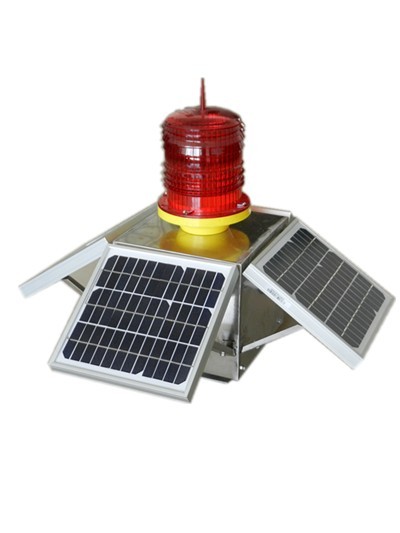

TQ-NAT4-DP LED Solar Highrise Building Navigation and Marine Buoy Lights

More Views

Features:
@  This product is consisted of polyacrylate, Fresnel lens, storage battery, a lamp holder, a Microcomputer Controller, high intensity LED, a physical battery with silicon solar energy and a sealed maintenance-free storage battery.
@  It has the function of waterproof, ageing and corrosion resistance. It can also produce strong flash with high-quality materials, advanced circuits and reasonable structure.
@  Micro-computer chip is used in the part of the core control.
@  The lamp has an automatic photo-sensor controlled by light with such advantages as energy-saving, long life expectancy and environmental protection.
@  On the top of the doom, there is also a bird spike.

Applications:
This lamp, using Micro-computer chip as the core control, is especially suitable for the below items:

① Navigation buoys, sea marks, sea harbors, exploration locations, marines etc.
② Skyscrapers, buildings, high chimneys etc.
③ Electric-power towers, television transmitting towers, bridge towers etc.
④ Airport lanes and others which are difficult to maintain in the usual time.

Features:
@  This product is consisted of polyacrylate, Fresnel lens, storage battery, a lamp holder, a Microcomputer Controller, high intensity LED, a physical battery with silicon solar energy and a sealed maintenance-free storage battery.
@  It has the function of waterproof, ageing and corrosion resistance. It can also produce strong flash with high-quality materials, advanced circuits and reasonable structure.
@  Micro-computer chip is used in the part of the core control.
@  The lamp has an automatic photo-sensor controlled by light with such advantages as energy-saving, long life expectancy and environmental protection.
@  On the top of the doom, there is also a bird spike.

Applications:
This lamp, using Micro-computer chip as the core control, is especially suitable for the below items:

① Navigation buoys, sea marks, sea harbors, exploration locations, marines etc.
② Skyscrapers, buildings, high chimneys etc.
③ Electric-power towers, television transmitting towers, bridge towers etc.
④ Airport lanes and others which are difficult to maintain in the usual time.


Specifications: (Double Panel)






















































































































Available Colors



Red, Green, White, Yellow, Blue etc



Visual Range: (nm)



3-6nm.



Horizontal Output



360 degrees



Vertical Divergence



15 degrees



Available Flash Characteristics



298 including steady-on (user-adjustable)



LED Life Expectancy



>100 000 hours



Nominal Voltage



DC 12V



Nominal Power



10W



Solar Module type



Multicrystalline



Solar Output



5W*4



Solar Module Efficiency



>14%



Charging Regulation



Microprocessor controlled



Battery Type



High-grade maintenance-free Lead Acid Battery



Battery Capacity



24Ah



Nominal Voltage



DC 12V



Autonomy



Flashing: >40 days(14 hours darkness 12.5% duty cycle)


Steady-on: >20 days



Body Material



Stainless steel



Lens Material



Polycarbonate-UV stabilized



Lens Diameter



130mm



Mounting



4×10mm holes on 130mm PCD



Height



500mm



Width



640mm



Mass



16kg



Life Expectancy



Up to 12 years



Humidity



0—100%



Waterproof



IP65



Wind Speed



160km/h



Temperature Range



-40-70 degrees
