Model Number
|

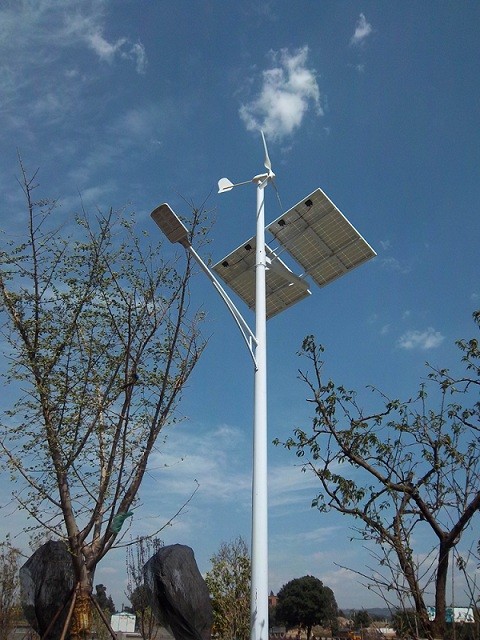

TQ-SL-C85 Combined Wind and Sun Solar Power Hybrid LED Street Lights (USA Technology)
|
Replacement for High Pressure Sodiun Lamp Equivalent (W)
|
250W - 450W HPSV |
Input Voltage
|
24V DC
|
Power Factor(PF)
|
＞0.9
|
Total Harmonic Distortion ( Thd)
|
＜20%
|
Power Efficiency
|
85%
|
Lamp Power Consumption
|
85w
|
LED Luminous Efficiency
|
≥80lm/W
|
Lamp’S Flux
|
> 6,800 lm(Tj=60℃,Ta=25℃)
|
Lamp’S Efficiency (%)
|
＞90%
|
Illumination (E)
|
(Height = 6m) ≥ 50 Lux
(Height = 8m) ≥ 28 Lux
(Height = 10m) ≥ 18 Lux
(Height = 12m) ≥ 12 Lux
|
Effective Illuminated Area
|
(Height = 6m): 24 x 6 m
(Height = 8m): 34 x 8 m
(Height = 10m): 40 x 10 m
(Height = 12m): 50 x 12 m
|
Color Temperature
|
Warm white: 2700 ~ 3200K
Cool white: 4000 ~ 4500K
Pure white: 6000 ~ 6500K
|
Color Index(CRI)
|
Ra＞75
|
Light Source
|
CREE
|
Light Distribution Curve/Beam Pattern
|
Asymmetric (Bat Wing)/ Rectangular Beam
|
Beam Angle
|
130°:The Horizontal Axis:130, ° The Vertical Axis:65°
|
Junction Temperature(Tj)
|
60 ℃ ±10 %( Ta=25℃)
|
System Resistance (Rja)
|
0.56°C/W
|
Working Temperature
|
-40°C ~ 50°C
|
Working Humidity
|
10% ~ 90%
|
Storage Temperature
|
-40°C ~ 80°C
|
Working Life
|
50,000 Hrs
|
Light Body& Lampshade
|
Aluminum Alloy And PC
|
The Dimensions(Units: mm)
|
865(L) x 335(W) x 109(H)
|
IP Rating
|
IP66
|
