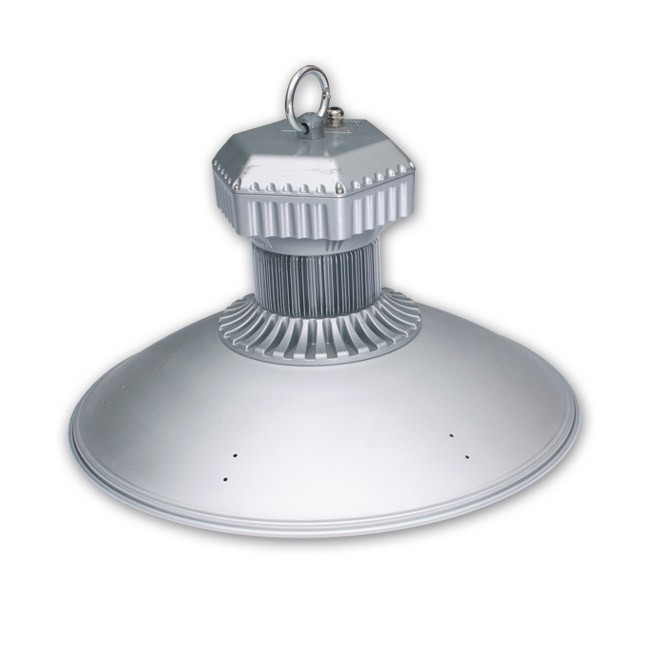

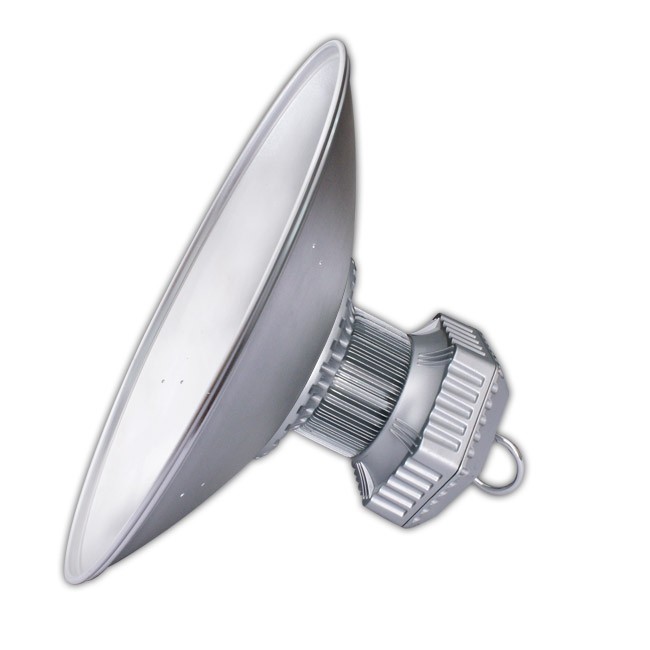

TQ-SD120W LED High Bay Lights

More Views

Characteristics: TQ-SPG-D120W LED High Bay Light



  • Lightweight aluminium structure coated to withstand the elements, from extreme cold and heat to high humidity

  • Our products come with the latest, most advanced and quality assured LED Technology that combine styling looks, maintenance free and safety.

  • Start quickly, high light efficiency, clear eye-sight. No flicker. Operate safely. No damages to eyes and skin

  • It can save 65 percent energy of the high voltage sodium lamp at the same intensity

  • Easier to be installed and used

  • High stability and low light pollution, LED has a high stability, and it is a real environmentally friendly and energy saving product


Main Technology Index: (USA Technology)







































































































































Product Name



LED High Bay Light



Model No.



TQ-SPG-D120W



Replacement



350W - 600W for Traditional Conventional Lights



LED Light Source



CREE XP-E  114 ~ 122 lm



LED Quantity



45 PCS



LED Luminous Efficiency



114 - 122 lm/w



Lamp Total Power



120W



Power Efficiency



86%



Lamp Total Flux



>8000 lm



lllumination and Effective Area



lllumination



Effective Area



Height 5M



85 lux



⊙ 9.5m Circle



Height 6M



49 lux



⊙ 12.5m Circle



Height 7M



30 lux



⊙  16m Circle



Height 8M



22 lux



⊙ 19m Circle



Color Rendering Index(CRI)



Ra≥ 75



Color Temperature(CCT)



2600 - 3700K;
3700 - 5000K;
5000 - 6300K



Beam Angle



80 degrees



Light Distribution/Beam Pattern



Round Beam



Input Voltage



100-240 V AC



Frequency



47-63Hz



Power Factor(PF)



≥ 0.95



Total Harmonic Distortion(THD)



≤ 15%



Storage Temperature



-40℃--+80℃



Working Environment



-40℃--+50℃; 10% - 90%RH



Working Lifetime



> 50,000 hours



IP Rating



IP44



Lamp Body Material



Aluminum 6063



Net Weight



4.7 kg



Gross Weight



6.4 kg



Product Dimension(mm)



¢498 x H300 mm



Package Size(mm)



L612 x W371 x H618 mm


Characteristics: TQ-SPG-120W LED High Bay Light



  • Lightweight aluminium structure coated to withstand the elements, from extreme cold and heat to high humidity

  • Our products come with the latest, most advanced and quality assured LED Technology that combine styling looks, maintenance free and safety.

  • Start quickly, high light efficiency, clear eye-sight. No flicker. Operate safely. No damages to eyes and skin

  • It can save 65 percent energy of the high voltage sodium lamp at the same intensity

  • Easier to be installed and used

  • High stability and low light pollution, LED has a high stability, and it is a real environmentally friendly and energy saving product


Main Technology Index: (USA Technology)







































































































































Product Name



LED High Bay Light  120W



Model No.



TQ-SD120W



Replacement



350W - 600W for Traditional Conventional Lights



LED Light Source



CREE XP-E  114 ~ 122 lm



LED Quantity



45 PCS



LED Luminous Efficiency



114 - 122 lm/w



Lamp Total Power



120W



Power Efficiency



86%



Lamp Total Flux



>8000 lm



lllumination and Effective Area



lllumination



Effective Area



Height 5M



85 lux



⊙ 9.5m Circle



Height 6M



49 lux



⊙ 12.5m Circle



Height 7M



30 lux



⊙  16m Circle



Height 8M



22 lux



⊙ 19m Circle



Color Rendering Index(CRI)



Ra≥ 75



Color Temperature(CCT)



2600 - 3700K;
3700 - 5000K;
5000 - 6300K



Beam Angle



80 degrees



Light Distribution/Beam Pattern



Round Beam



Input Voltage



100-240 V AC



Frequency



47-63Hz



Power Factor(PF)



≥ 0.95



Total Harmonic Distortion(THD)



≤ 15%



Storage Temperature



-40℃--+80℃



Working Environment



-40℃--+50℃; 10% - 90%RH



Working Lifetime



> 50,000 hours



IP Rating



IP44



Lamp Body Material



Aluminum 6063



Net Weight



4.7 kg



Gross Weight



6.4 kg



Product Dimension(mm)



¢498 x H300 mm



Package Size(mm)



L612 x W371 x H618 mm
