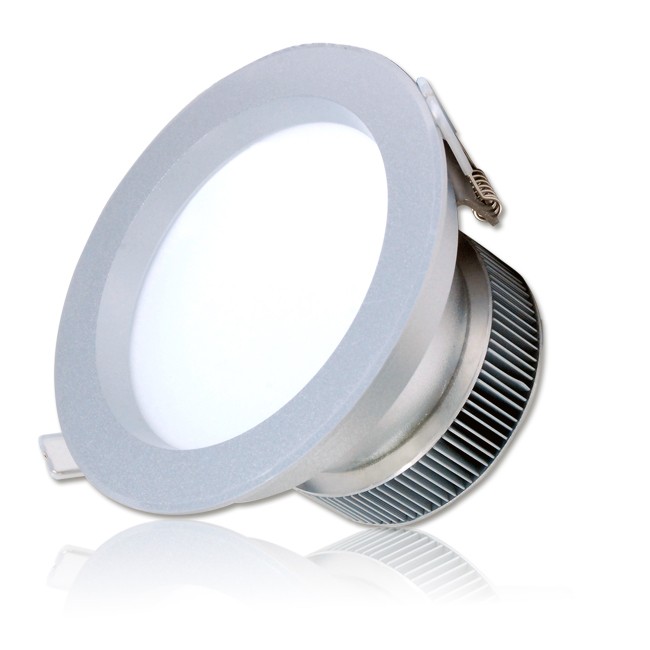

TQ-DL-D9W 6" LED Dimmable Down Lights 9W

More Views

Illumination design affect commercial atmosphere hugely, it’s the collection of architecture, physiology, optical, aesthetic and various, ever-changing technique of expression. Not only required ample luminance but also strong artistry to create better lighting effect atmosphere.



  • Integration design, directly replace traditional light

  • Use high quality original Cree LED, low power consumption, no pollution and long life

  • Instant star, no noise, no flickering and work steadily

  • Wide input voltage range, AC 85-300V, isolated power supply, constant current drive, pollution free, stable performance, safe and reliable


TQ LED Down Light is high-grade indoor lighting for lumination and decoration, using Cree LED as light source. With aluminum alloy body case made by precise CNC machines, soft light and uniform illuminance, TQ LED Down Light with dimming function is best green light option for home and commercial lighting application.









Illumination design affect commercial atmosphere hugely, it’s the collection of architecture, physiology, optical, aesthetic and various, ever-changing technique of expression. Not only required ample luminance but also strong artistry to create better lighting effect atmosphere.



  • Integration design, directly replace traditional light

  • Use high quality original Cree LED, low power consumption, no pollution and long life

  • Instant star, no noise, no flickering and work steadily

  • Wide input voltage range, AC 85-300V, isolated power supply, constant current drive, pollution free, stable performance, safe and reliable


TQ LED Down Light is high-grade indoor lighting for lumination and decoration, using Cree LED as light source. With aluminum alloy body case made by precise CNC machines, soft light and uniform illuminance, TQ LED Down Light with dimming function is best green light option for home and commercial lighting application.





Specifications:





















































































































Model



TQ-DL-D9W  6" LED Dimmable Down Lights  9W  (USA Technology)



LED light source



CREE LED 107-122lm/W



LED Qty.



6 PCS



Lamp flux



620 lm



Lamp power



9W



Dimmable



Yes



Lamp efficiency



70lm/W



Beam angle( Half light intensity)



90°



Central Illumination intensity and Effective Illuminated Area



Illumination



Effective Illuminated Area



Height  3M



25 lux



6m diameter circle



Height  4M



13 lux



8m diameter circle



Height  5M



8 lux



10m diameter circle



Height  6M



5 lux



12m diameter circle



Color Index(CRI)



≥80



Color Temperature (CCT)



2700-3500K, 4000-5000K, 5000-65000K



Input Voltage



AC 100-240V



Frequency Range



47-63Hz



Power Factor(PF)



≥0.90



Total Harmonic Distortion(THD)



≤20%



Storage Temperature



-40℃~+60℃



Working Environment



-20℃~+45℃  10~90%RH



Light Body Material



Aluminum Alloy



Installation Hole size



Φ125



Net Weight



0.52 Kg



Product size(mm)



¢135 x H99 mm



Package Size (mm)



175L x 175W x 155H mm
