Experience The Highest Quality LED Products From TQ LEDS

TQ-LStar-990W LED Landscape Lights

More Views

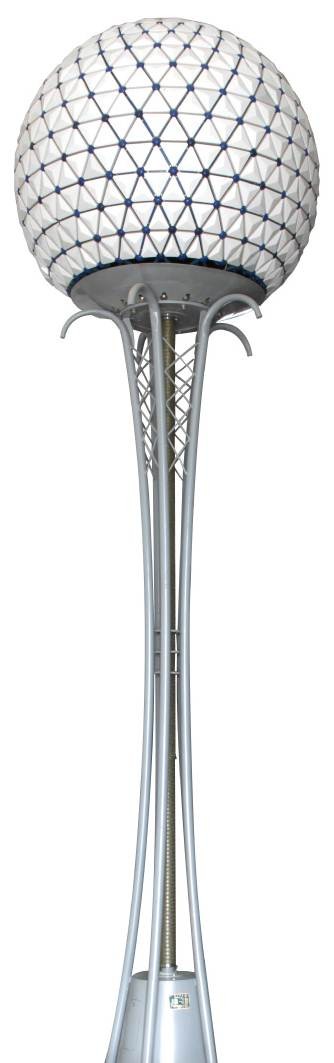

TQ-Star-LS990W  LED Landscape Lights 990W

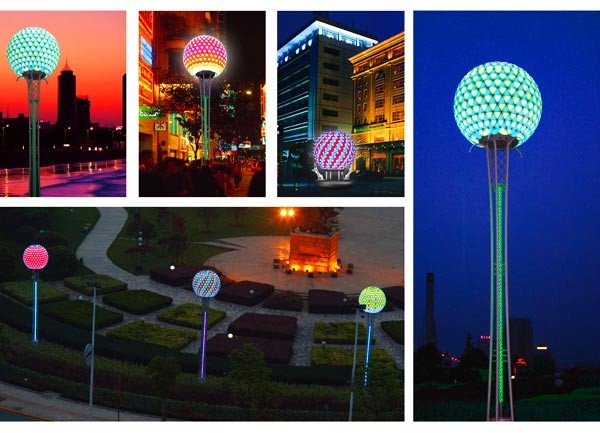

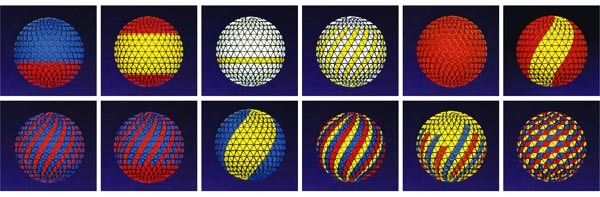

Luminary Variation Effects
The illumination system is set and programmed with RS232 Protocol and the point-to-point control is carried out for RGB Tri Primitive Colors to realized seven colors changes of overall effect. In this mode. The program can be changed freely to control the light variation graphics and speed. The light graphics effects come in over 200 varieties, e.g, transverse varieties, cross varieties, solid varieties and free-combination varieties, to meet the need of different ambiences.


Structure Features and Material Descriptions
Our LED Infrastructure Lighting Products are passed with American UL Certificate
@  Our LED lighting products have been accredited for CE, RoHS, UL, SABS, ETL and PSE Certifications
Components: frame structure. LED luminary module and control systems®
@  LED luminary module: Latex-filled LED module features good water and heat resistance and good heat radiation and anti-ageing properties.
@  Light chip is made of modified polycarbonate resin with a high anti-UV ray quality and keeps a higher lustre appearance over a long time without yellowing.


Applications:
Lamp body is suitable for Airports, Townships, MRT Stations, Railway Stations, Shopping Malls, Heritage Buildings, Hotels, Parks, Squares, Streets, Hotels, etc.













Technical Specifications (USA Technology)





















































































Product Model



TQ-LStar-990W



TQ-LStar-2310W



TQ-LStar-4070W



Input Voltage



AC100 - 240V



AC100 - 240V



AC100 - 240V



Current Rating



4.5A



10.5A



18.5A



Module Quantity



670 pcs



1499 pcs



2680 pcs



Total Power



Max 990W



Max 2310W



Max 4070W



Ball Diameter (meter)



2M



3M



4M



Weight (kg)



400 Kg



1100 Kg



2000 Kg



Temperature of Working Condition (c)



-25c - +50c



-25c - +50c



-25c - +50c



Humidity of Working Condition



10% - 90%



10% - 90%



10% - 90%



Lifespan



       >50000



>50000



>50000



Protection Grade



IP65



IP65



IP65



Product Dimension (mm)



Φ2000



Φ3000



Φ4000



Support High (mm)



4500



5000



6000



TQ-Star-LS990W  LED Landscape Lights 990W


Luminary Variation Effects
The illumination system is set and programmed with RS232 Protocol and the point-to-point control is carried out for RGB Tri Primitive Colors to realized seven colors changes of overall effect. In this mode. The program can be changed freely to control the light variation graphics and speed. The light graphics effects come in over 200 varieties, e.g, transverse varieties, cross varieties, solid varieties and free-combination varieties, to meet the need of different ambiences.



Structure Features and Material Descriptions
•   Components: frame structure. LED luminary module and control systems®
•   LED luminary module: Latex-filled LED module features good water and heat resistance and good heat radiation and anti-ageing properties. Light chip is made of modified polycarbonate resin with a high anti-UV ray quality and keeps a higher lustre appearance over a long time without yellowing.



Applications:

Lamp body is suitable for Airports, Townships, MRT Stations, Railway Stations, Shopping Malls, Heritage Buildings, Hotels, Parks, Squares, Streets, Hotels, etc.













Technical Specifications (USA Technology)





















































































Product Model



TQ-LStar-990W



TQ-LStar-2310W



TQ-LStar-4070W



Input Voltage



AC100 - 240V



AC100 - 240V



AC100 - 240V



Current Rating



4.5A



10.5A



18.5A



Module Quantity



670 pcs



1499 pcs



2680 pcs



Total Power



Max 990W



Max 2310W



Max 4070W



Ball Diameter (meter)



2M



3M



4M



Weight (kg)



400 Kg



1100 Kg



2000 Kg



Temperature of Working Condition (c)



-25c - +50c



-25c - +50c



-25c - +50c



Humidity of Working Condition



10% - 90%



10% - 90%



10% - 90%



Lifespan



       >50000



>50000



>50000



Protection Grade



IP65



IP65



IP65



Product Dimension (mm)



Φ2000



Φ3000



Φ4000



Support High (mm)



4500



5000



6000
