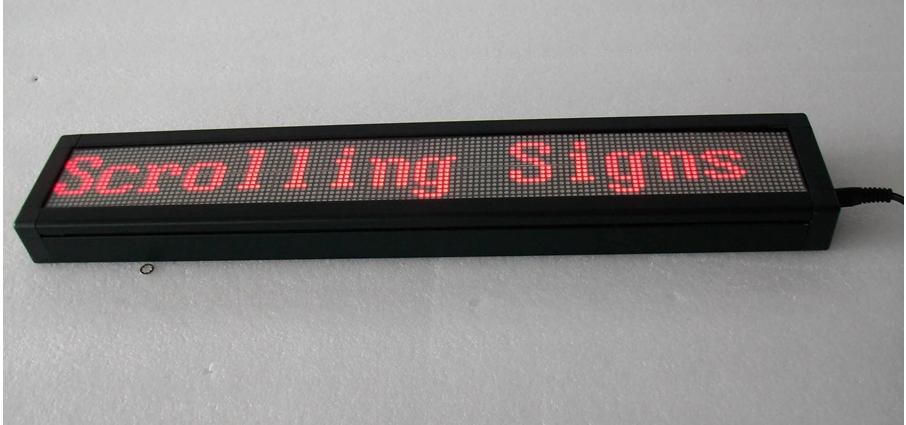

TQ-IN762-16x128-RG Semi-Outdoor LED Moving Message Window Sign
TQ-IN762-16x128-RG Semi-Outdoor LED Moving Message Window Sign

More Views

Features:



  • Color - Red & Green Color

  • Multi Countries Languages Supported

  • Our products come with the latest, most advanced and quality assured LED Technology that combine stylish looks, maintenance free and safety.

  • Pixel Matrix - 16*128 dot

  • Ultra Bright LEDS

  • Usage - Semi-outdoor

  • Brightness - More than 3500cd/m2

  • Semi-outdoor LED Displays, which is made by higher of quality brightness LED Lamp

  • can display text, graphic, animation, real-time with many actions.



Specifications:















































































 Pixel Pitch Type:

7.62


 Pixel Matrix:

16 x 128 dot   Ultra Bright LEDS


 Display Area:

122mm x 976mm


 Environment:

Semi-outdoor


 Display color:

Red color  & Green Color


 Life Span:

 > 100000hours(10-15years)


 Communication:

RS232, RS485, USB to RS232 Converter, Infra-  red remote  control, TCP/IP Network, Wireless control(GSM, GPRS)


  Outline Board:

Aluminum Aloy enclosure.


  Power Input:

AC110V - 220V


  Power Consumption:

60w


  Brightness:

 > 3500cd/m2


  Gross.Weight (kgs):

6 kgs

Certifications:

CE and RoHS

Can show Mult-Languages

Yes

Other Specifacation can be availble:

16 x 64dots, 16 x 96dots, 16 x 192dots, 16 x 256dots

Dimension:  L x H x D (mm)

   1015 x 160  x 40  mm

Dimension: L x H x D (inches)

  40 x 6.3 x 1.57 inches

Save and Display Multiple Messages

120 frame memory storage, Move, Scroll, Jump, Open, Cover, Immediate, Random..... up to 16 modes

Features:



  • Semi-outdoor LED Displays, which is made by higher of quality brightness LED Lamp

  • Multi Countries Languages Supported

  • Our products come with the latest, most advanced and quality assured LED Technology that combine stylish looks, maintenance free and safety.

  • can display text, graphic, animation, real-time with many actions.



Specifications:















































































 Pixel Pitch Type:

7.62


 Pixel Matrix:

16 x 128 dot   Ultra Bright LEDS


 Display Area:

122mm x 976mm


 Environment:

Semi-outdoor


 Display color:

Red color  & Green Color


 Life Span:

 > 100000hours(10-15years)


 Communication:

RS232, RS485, USB to RS232 Converter, Infra-  red remote  control, TCP/IP Network, Wireless control(GSM, GPRS)


  Outline Board:

Aluminum Aloy enclosure.


  Power Input:

AC110V - 220V


  Power Consumption:

60w


  Brightness:

 > 3500cd/m2


  Gross.Weight (kgs):

6 kgs

Certifications:

CE and RoHS

Can show Mult-Languages

Yes

Other Specifacation can be availble:

16 x 64dots, 16 x 96dots, 16 x 192dots, 16 x 256dots

Dimension:  L x H x D (mm)

   1015 x 160  x 40  mm

Dimension: L x H x D (inches)

  40 x 6.3 x 1.57 inches

Save and Display Multiple Messages

120 frame memory storage, Move, Scroll, Jump, Open, Cover, Immediate, Random..... up to 16 modes
