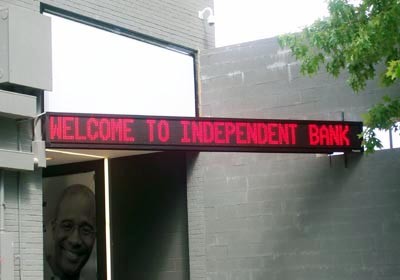

TQ-IN762-16x256-R Semi-outdoor LED Moving Message Window Sign
TQ-IN762-16x256-R Semi-outdoor LED Moving Message Window Sign

More Views

Features:



  • Color - Red color

  • Multi Countries Languages Supported

  • Our products come with the latest, most advanced and quality assured LED Technology that combine stylish looks, maintenance free and safety.

  • Pixel Matrix - 16 x 256 dot

  • Ultra Bright LEDS

  • Usage - Semi-outdoor

  • Brightness - > 3500cd/m2

  • Semi-outdoor LED Displays, which is made by higher of quality brightness LED Lamp

  • can display text, graphic, animation, real-time with many actions.



Specifications:















































































 Pixel Pitch Type:

    7.62


 Pixel Matrix:

    16 x 256 dot   Ultra Bright LEDS


 Display Area:

    122mm x 976mm


 Environment:

    Semi-outdoor


 Display color:

    Red color  and Green Color


 Life Span:

     > 100000 hours(10-15years)


 Communication:

     RS232, RS485, USB to RS232 Converter, Infra-  red remote  control, T CP/IP Network, Wireless control(GSM, GPRS)


  Outline Board:

   Aluminum Aloy enclosure.


  Power Input:

   AC110V - 220V


  Power Consumption:

     60w


  Brightness:

    > 3500cd/m2


  Gross.Weight (kgs):

     6 kgs

Certifications:

     CE   and RoHS

Can show Mult-Languages

Yes

Other Specifacation can be availble:

16x 64dots, 16 x 96dots, 16 x 192dots, 16 x 256dots

Dimension:  L x H x D (mm)

   2000  x 160  x 40  mm

Dimension: L x H x D (inches)

  78.7 x 6.3 x 1.57 inches

Save and Display Multiple Messages

120 frame memory storage, Move, Scroll, Jump, Open, Cover, Immediate, Random..... up to 16 modes

Features:



  • Semi-outdoor LED Displays, which is made by higher of quality brightness LED Lamp

  • Multi Countries Languages Supported

  • Our products come with the latest, most advanced and quality assured LED Technology that combine stylish looks, maintenance free and safety.

  • can display text, graphic, animation, real-time with many actions.



Specifications:















































































 Pixel Pitch Type:

    7.62


 Pixel Matrix:

    16 x 256 dot   Ultra Bright LEDS


 Display Area:

    122mm x 976mm


 Environment:

    Semi-outdoor


 Display color:

    Red color  and Green Color


 Life Span:

     > 100000 hours(10-15years)


 Communication:

     RS232, RS485, USB to RS232 Converter, Infra-  red remote  control, T CP/IP Network, Wireless control(GSM, GPRS)


  Outline Board:

   Aluminum Aloy enclosure.


  Power Input:

   AC110V - 220V


  Power Consumption:

     60w


  Brightness:

    > 3500cd/m2


  Gross.Weight (kgs):

     6 kgs

Certifications:

     CE   and RoHS

Can show Mult-Languages

Yes

Other Specifacation can be availble:

16x 64dots, 16 x 96dots, 16 x 192dots, 16 x 256dots

Dimension:  L x H x D (mm)

   2000  x 160  x 40  mm

Dimension: L x H x D (inches)

  78.7 x 6.3 x 1.57 inches

Save and Display Multiple Messages

120 frame memory storage, Move, Scroll, Jump, Open, Cover, Immediate, Random..... up to 16 modes
