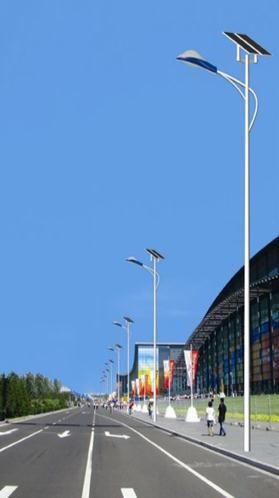

TQ-SL60 LED High Power Solar Street Light 60W (USA Technology)
TQ-SL60 LED High Power Solar Street Light 60W (USA Technology)

More Views

Technical Specifications:














































Model No.:


 TQ-SL60  LED High Power Solar Street Light 60W  (USA Technology)

Solar Panel: (pcs)


 2 x 110Wp 17.5V, high-efficiency mono or polycrystalline PV  module, A-class

LED Light Source:


 LED Power:  60W  DC24V; LED Street Lamp, Bridgelux  50MIL LED Chips, 110~120LM/W

Replacement Traditional Lamp HPSV


 220W HPSV Lamp

Controller:


 24V 10A, light/time intelligent control, PWM mode;  various protections; Waterproof, IP66 guard level; various protections

Battery:


 2 pcs x 12V 100AH, solar special lead-acid battery, fully sealed deep cycle free maintenance type

Pole Set:


 Come with 8m high, Q235 steel pipe; hot-dip galvanized and spray coated treatment, rustproof; including solar panel bracket, lamp arm and foundation cage are included

Battery Box:


 PVC material, underground-buried type, waterproof and heat-dissipative; including PVC cable tube

Working Time: (hrs)


 10 hours/day (full power lighting), battery capacity providing 3 continuous days backup in cloudy or rainy condition
Certifications CE and RoHS

Technical Comments:
(a)  Above system configurations are based on scientific calculation and engineering project experience. They are suitable for areas with annual average peak power sunshine of 4.5hrs per day. Battery capacity is designed for 3 days backup in cloudy or rainy weather.
(b)  The system configurations can be customized based on client's specific project requirement and weather conditions.
(c)  The batteries are suggested to be placed in battery box and buried in a underground cement pit. In this way, it can avoid extremely high temperature due to sunshine exposure or too cold weather in Winter, Waterproof and Theftproof, easy for replacement for post sales supports.
(d)  The pole patterns are standardized type, practical and economical, which can also be customized as per client's specific requirement.
(e)  All parts are certified by CE and ROHS certificates, compliances to USA and European standard.


Technical Specifications:














































Model No.:


 TQ-SL60  LED High Power Solar Street Light 60W  (USA Technology)

Solar Panel: (pcs)


 2 x 110Wp 17.5V, high-efficiency mono or polycrystalline PV  module, A-class

LED Light Source:


 LED Power:  60W  DC24V; LED Street Lamp, Bridgelux  50MIL LED Chips, 110~120LM/W

Replacement Traditional Lamp HPSV


 220W HPSV Lamp

Controller:


 24V 10A, light/time intelligent control, PWM mode;  various protections; Waterproof, IP66 guard level; various protections

Battery:


 2 pcs x 12V 100AH, solar special lead-acid battery, fully sealed deep cycle free maintenance type

Pole Set:


 Come with 8m high, Q235 steel pipe; hot-dip galvanized and spray coated treatment, rustproof; including solar panel bracket, lamp arm and foundation cage are included

Battery Box:


 PVC material, underground-buried type, waterproof and heat-dissipative; including PVC cable tube

Working Time: (hrs)


 10 hours/day (full power lighting), battery capacity providing 3 continuous days backup in cloudy or rainy condition
Certifications CE and RoHS
