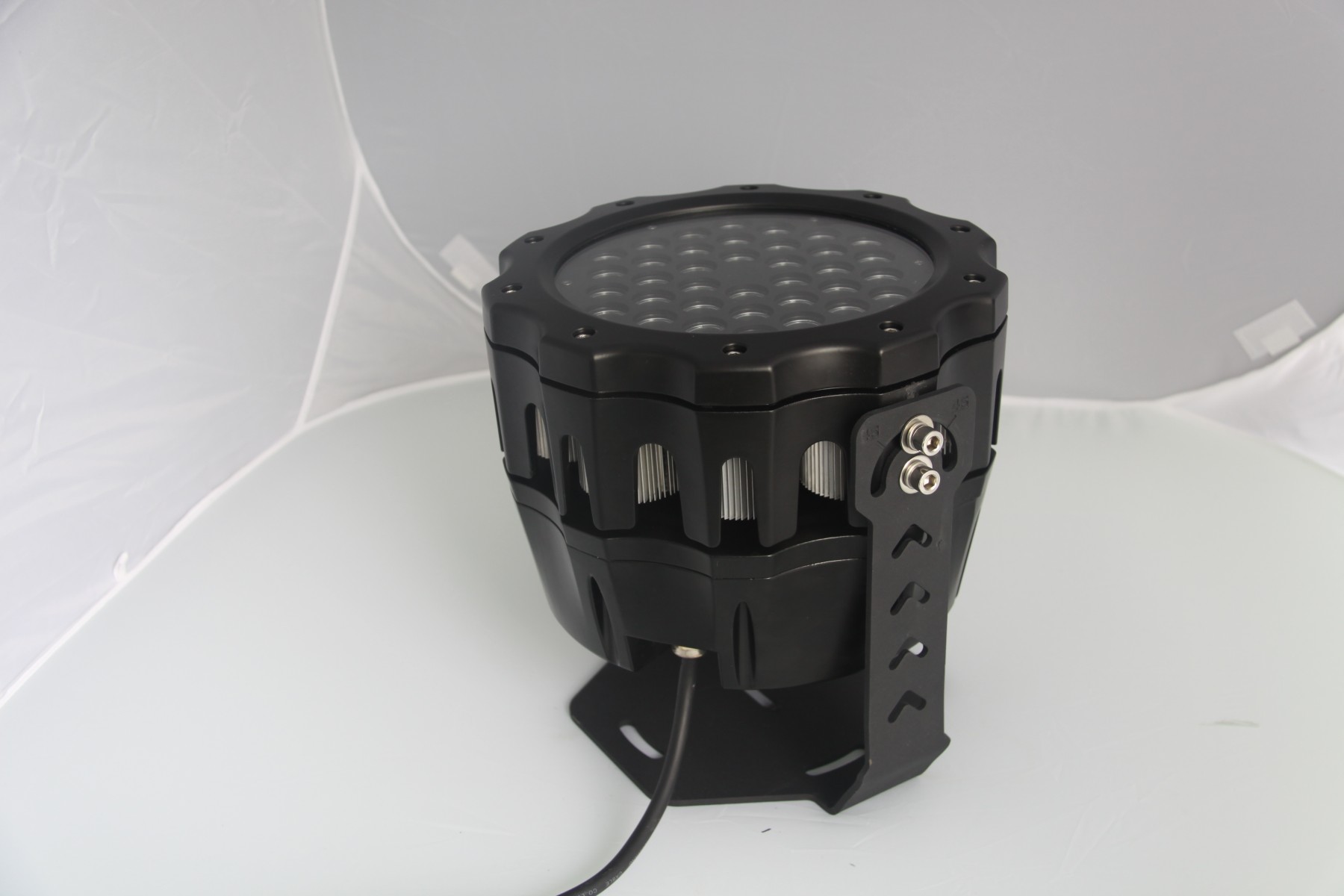

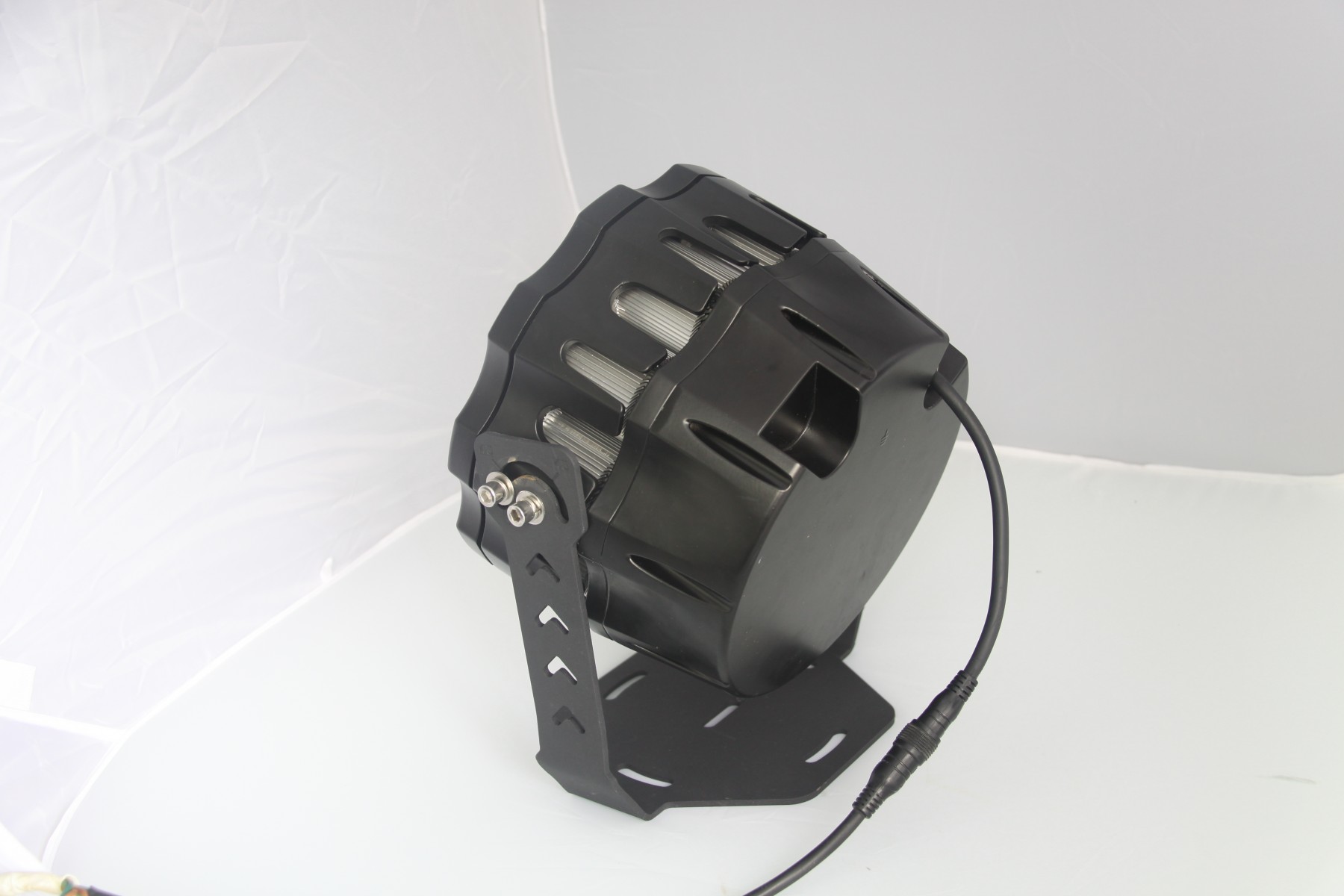

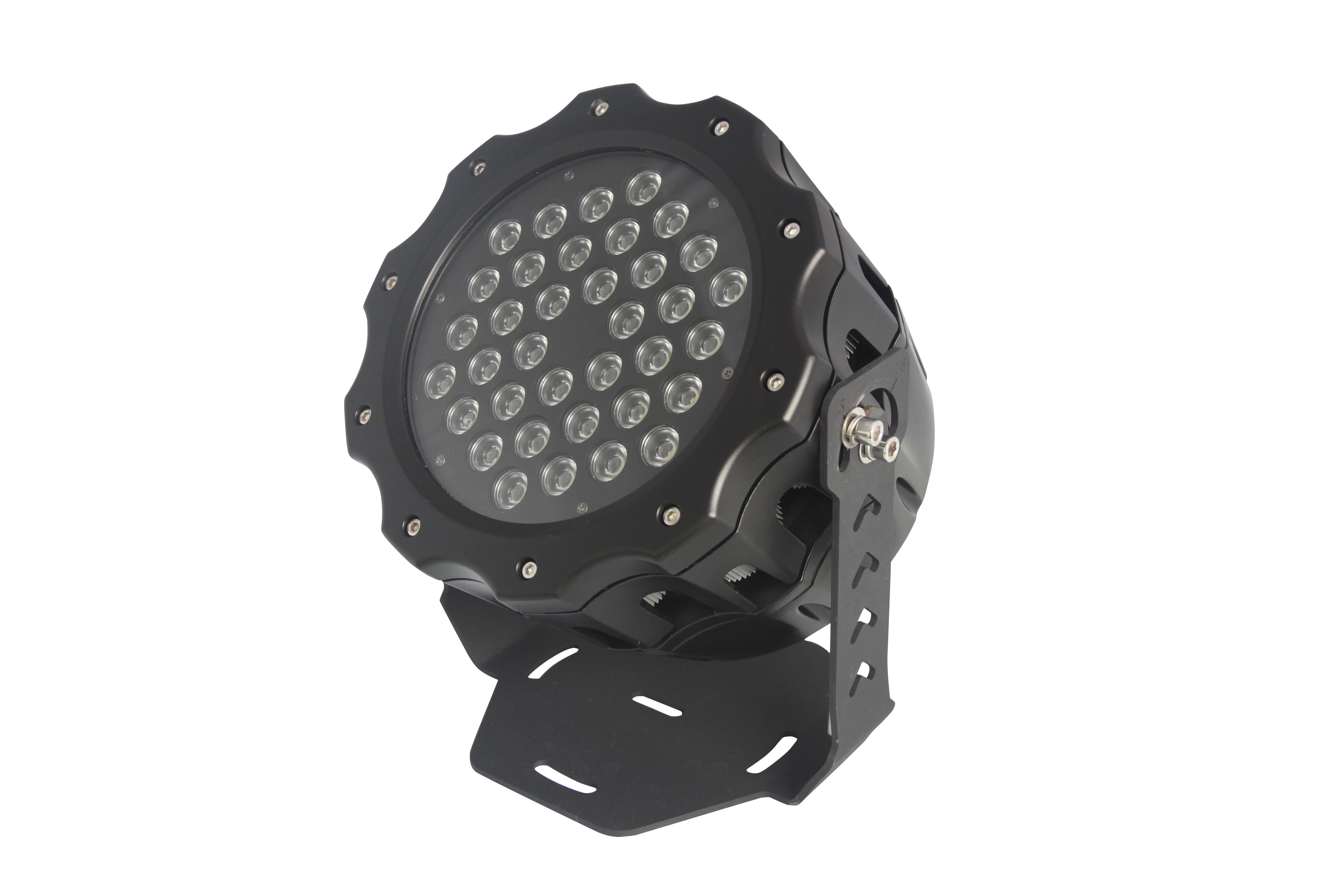

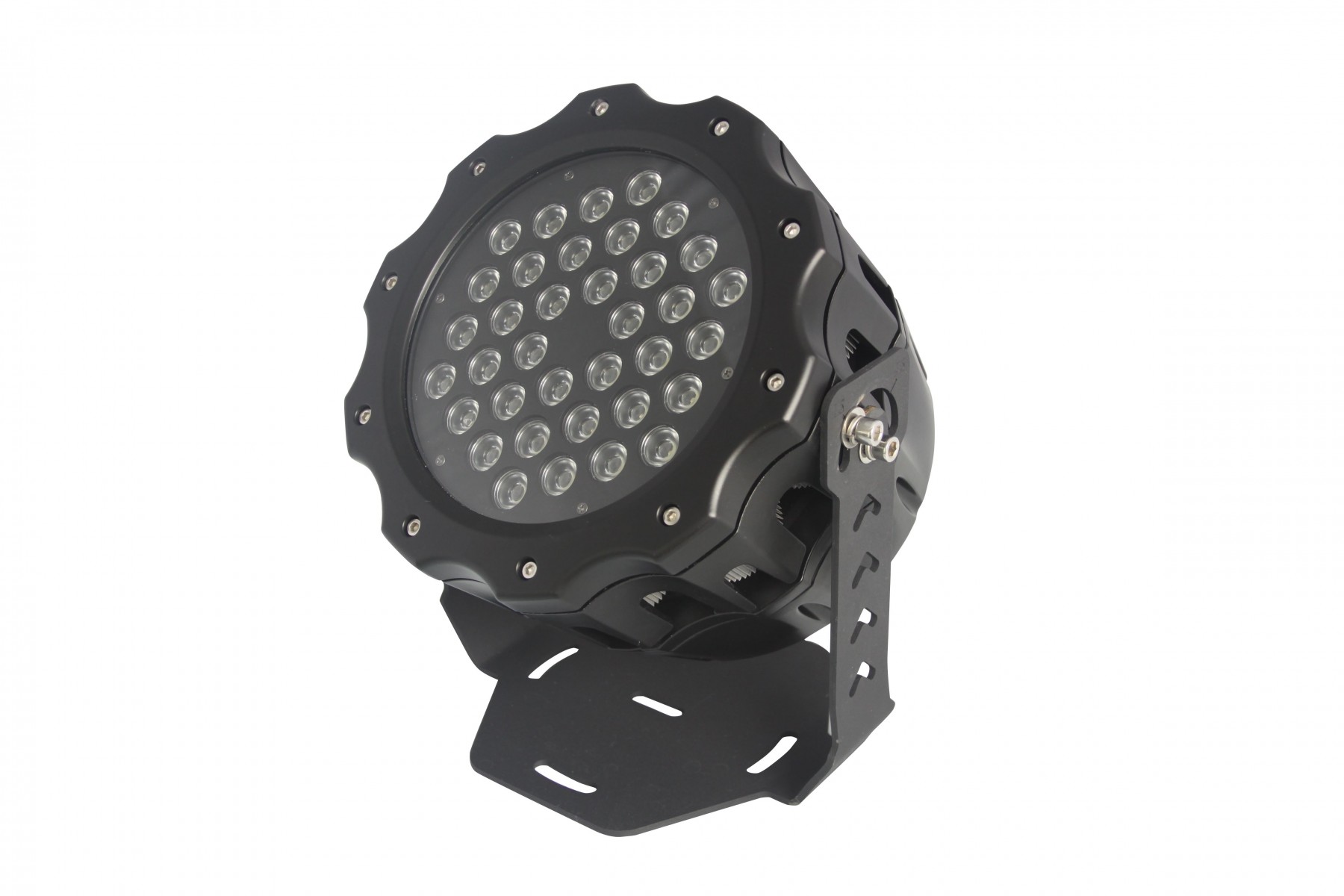

72W RGB-LED High Power Round Flood Lights

● Product Name and Part Number

TQ-WW9009-72W --36-LED x 2W single light-source, RGB, AC100-240V

● Introduction

Hight power led is used as the light source, the round flood light has many advantages, for instance, new form, low power consumption, long lifespan (> 50,000 hours), anti-shock, high reliability, environment friendly, soft colors, high luminance, etc.

RGB flood light：Beam angle 60°, With inside 13 kinds of effect， connect exterior control box or exterior console for different options so that can control all units together or some sections separately. Red, Green, Blue, Jumping changing, gradual changing, flash changing and other effects of fourteen kinds. With digital display window and adjusted buttons, it is easy for customers to adjust different programs.

l Application

Waterproof IP65 and working temprature of －20℃~45℃, the floodlight can bear all kinds of different environments, and the floodlight is ideal for decoration of buildings, cultural place, park, amusement park and so on.

l Technical parameters

l Diagram for installation and connection

1. High voltage, single color, round flood light，can be lighted up with power on, each lamp with input high-voltage electric alone.

2. Connection methods for high voltage RGB, round flood light

Attention:

1. Please consider about” the working condition”, the lamp can not be put in water for long time


2. Each RGB flood light takes up 3 DMX addresses, the first flood light’s address plus 3 is the address for the second one.


3. If you want all connected flood lights to change colors together, you should set the same address for all the flood lights.


4. Please set the address from 001 to 512.


5. The maximum address should be less than 510.


6. There should be only one main flood light as a master (the flood light works in main control mode, control box or control console).


7. When many single row flood lights connected together, the connections please refer to the connection diagram.


8. The connection cable between two controllers, or between console and signal amplifiers. It can’t exceed 100m; The distance between the first signals amplifier or console and the last flood light can’t exceed 100m

Warning

1. Please do not connect the power when the lights are in package


2. Please do not connect the power supply before installation, and ensure the device is completely connected into the ground


3. Please replace any cracked protective cover；


4. Please attention to fire prevention, electricity and vibration；


5. Please read the instructions carefully before installation, and keep it for future reference.

Attention

1. Corrosive or solubility chemicals will damage of the protective shell of lights；


2. The working temperature is －20℃~45℃，and humidity is 0~95％. The lifetime will be adversely affected when beyond this scope. Storage temperature：-35~70℃；


3. Please advise that we are not responsible for the effect when the components are not purchased from TQ LEDS.

Instruction for installation

1. Please make sure there is no short circuit before turning on the power, otherwise the parts of the device would be burn out.


2. Around the lamp should fill with some gravel or sand when installation, it is better for the heat rink and drainage. And make sure there is no corrosive, inflammability and explosive material around.



Note: A. Make sure the power is be turned off while installation or dismounting.

B. Please replace with new lamp when the lamp body is defected.

Problems and solutions:

1. If the light cannot light up, please check whether it connects with power supply properly and whether the switch is on.

2. If the light turns on and off frequently, please check whether the connection between power and lamp is fixed properly.

Note: Please contact professional electrical wireman in case of above solutions do not work properly.
