Model Number
|

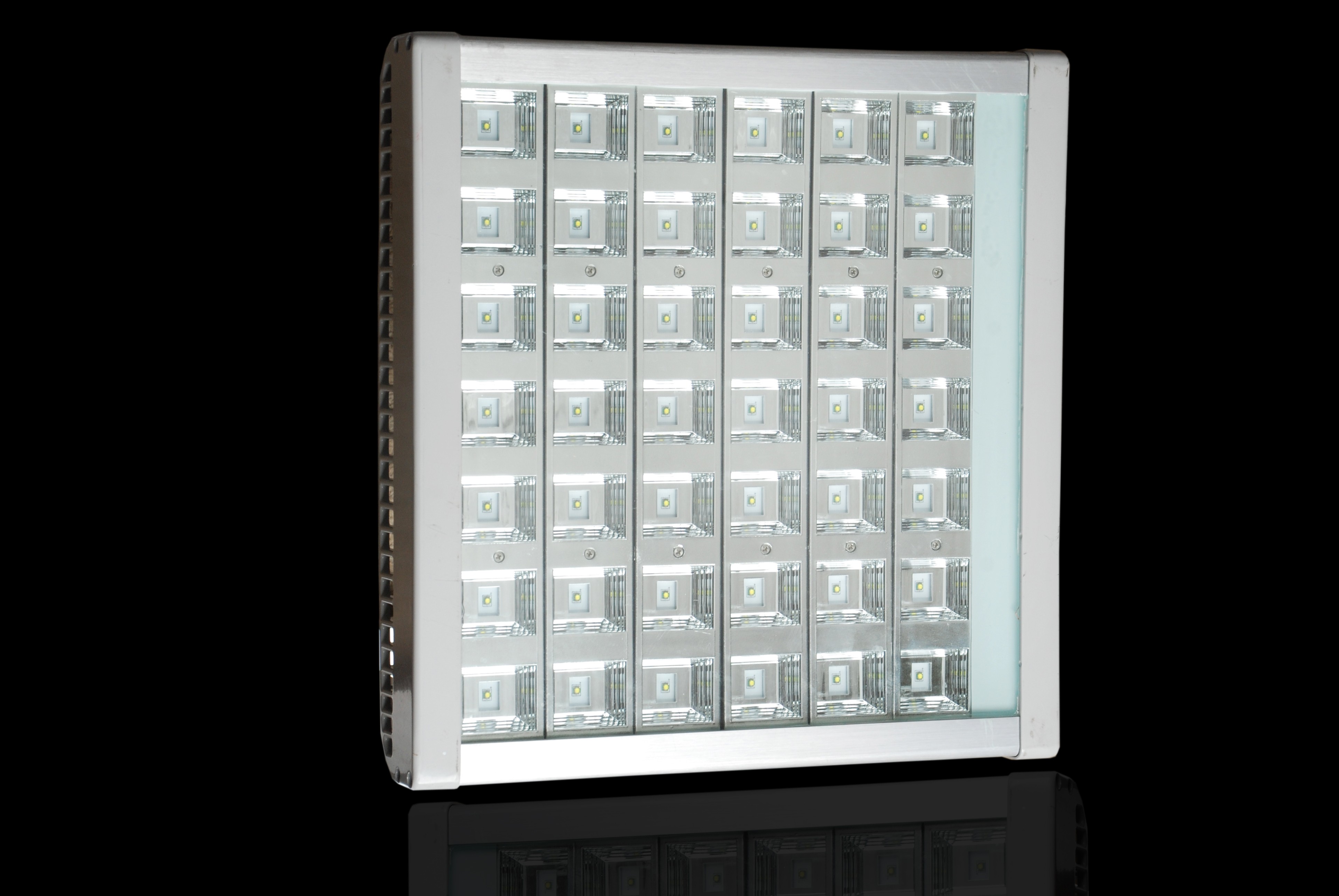

TQ-SF42 (Square) LED High Power Tunnel Lights / LED Flood Lights (USA Technology) 50W
|
LED Source
|
CREE 1W LED
|
Replacement
|
130W - 220W for Traditional Lamp Lights
|
LED Quantity
|
42 PCS
|
LED Luminous Efficiency
|
107-122 lm/W
|
LED Initial Flux
|
4494 lm
|
Lamp Total Power
|
50W
|
Power Efficiency
|
>85%
|
Lamp Total Luminous Flux
|
3500 lm (Tj=60℃,Ta=25℃)
|
Illumination and Effective area
|
Illumination Effective area
|
Height 5M
|
40 lux 12m x10m
|
Height 6M
|
31 lux 14m x 12m
|
Height 7M
|
22.5 lux 16.5m x 14m
|
Height 8M
|
15.5 lux 19m x 16m
|
Color Rendering Index (CRI) Ra
|
>75
|
|
Warm White: 2600-3700K
|
Color Temperature (CCT)
|
Cool White: 3700-5000K
|
|
Pure White: 5000-6500K
|
Beam Angle
|
Horizontal Axis: 100°,Vertical Axis: 90°
|
Light Distribution Curve/Beam Pattern
|
Asymmetric/ Rectangular Beam
|
Input Voltage
|
85-300V AC
|
Frequency Range
|
47-63 Hz
|
Power Factor (PF)
|
≥0.95
|
Total Harmonic Distortion (THD)
|
<20%
|
Storage Temperature
|
-40℃ - +80℃
|
Working Environment
|
-40℃ - +50℃; 10% - 95% RH
|
Working Lifetime
|
> 50,000 hours
|
IP Rating
|
IP65
|
Lamp Body Material
|
Aluminum Alloy and Strengthened Glass
|
Net Weight
|
9.0 kgs
|
Gross Weight
|
10.16 kgs
|
Product Dimension (mm)
|
316(L) x 331(W) x 224(H)
|
Package Size (mm)
|
368(L)x 385(W) x 250(H) (1 PC)
|
