Model Number
|

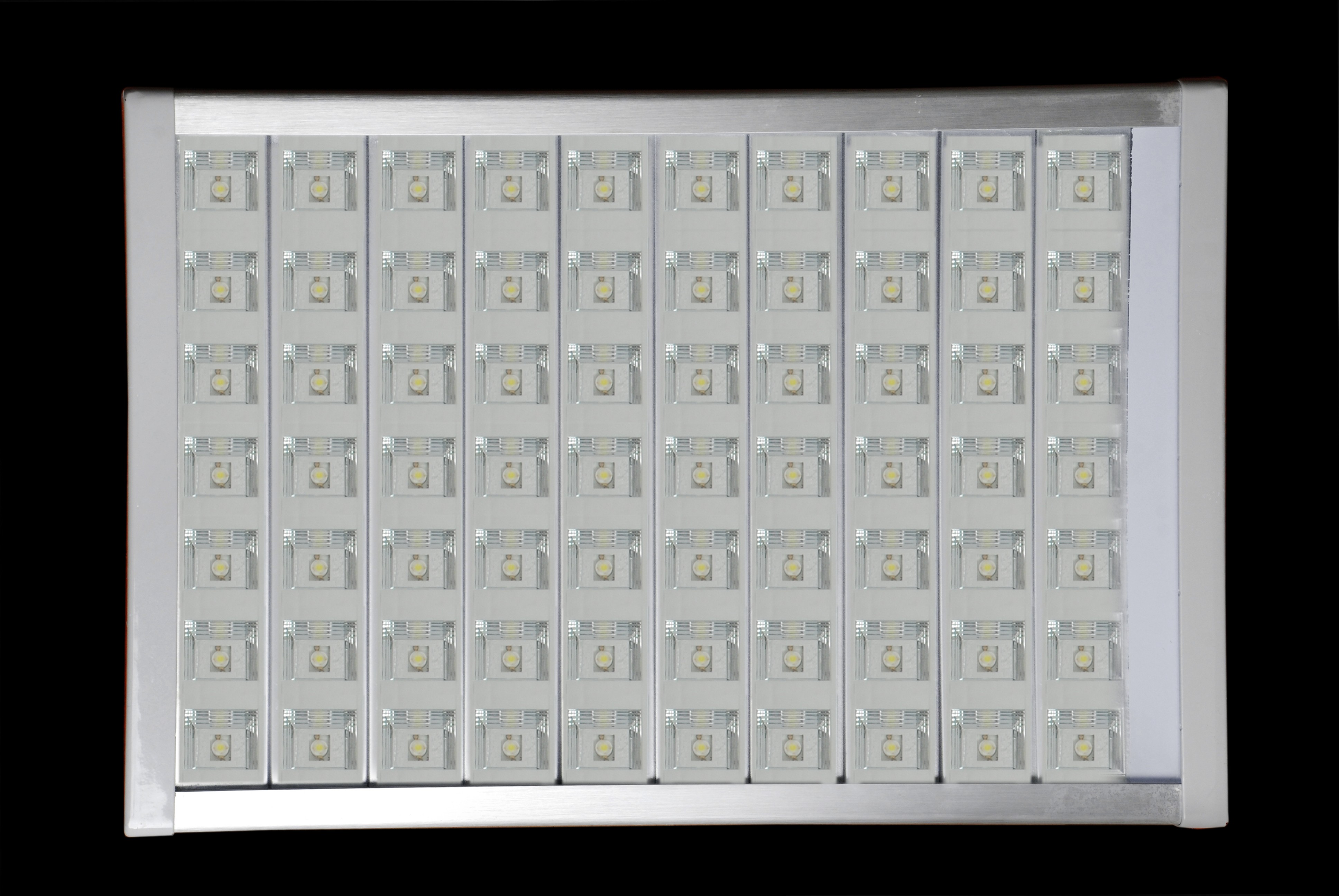

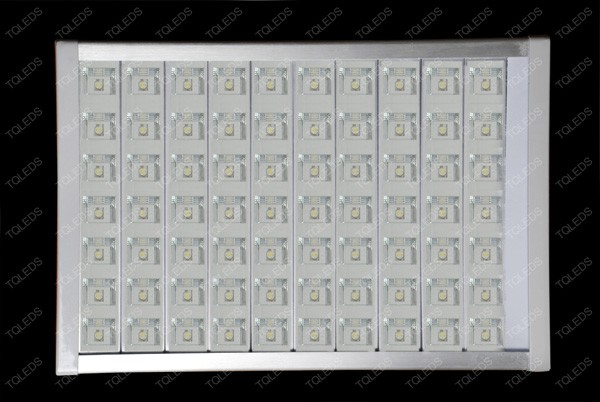

TQ-SF70 (Square) LED High Power Flood Tunnel Light and LED Flood Light 85W
|
LED Source
|
CREE 1W LED
|
Replacement
|
200W - 350W for Traditional Lamp Lights
|
LED Quantity
|
70 PCS
|
LED Luminous Efficiency
|
107-122 lm/W
|
LED Initial Flux
|
7490 lm
|
Lamp Total
|
85W
|
Power Efficiency
|
> 86%
|
Lamp Total Luminous Flux
|
6200 lm (Tj=60℃,Ta=25℃)
|
Illumination and Effective area
|
Illumination Effective area
|
Height 5M
|
55 lux 13m x10.5m
|
Height 6M
|
42.5 lux 15m x 12.5m
|
Height 7M
|
30 lux 17.5m x 14.5m
|
Height 8M
|
20.5 lux 20m x 16.5m
|
Color Rendering Index (CRI)
|
Ra >75
|
|
Warm White: 2600-3700K
|
Color Temperature (CCT)
|
Cool White: 3700-5000K
|
|
Pure White: 5000-6500K
|
Beam Angle
|
Horizontal Axis: 100°,Vertical Axis: 90°
|
Light Distribution Curve/Beam Pattern
|
Asymmetric/ Rectangular Beam
|
Input Voltage
|
85-300V AC
|
Frequency Range
|
47-63 Hz
|
Power Factor (PF)
|
≥0.95
|
Total Harmonic Distortion (THD)
|
<15%
|
Storage Temperature
|
-40℃ - +80℃
|
Working Environment
|
-40℃ - +50℃; 10% - 95% RH
|
Working Lifetime
|
> 50,000 hours
|
IP Rating
|
IP65
|
Lamp Body Material Aluminum
|
Alloy and Strengthened Glass
|
Net Weight
|
11.6 kgs
|
Gross Weight
|
13.2 kgs
|
Product Dimension (mm)
|
488(L) x 331(W) x 224(H)
|
Package Size (mm)
|
540(L) x 385(W) x 250(H) (1 PC)
|
