Model Number
|

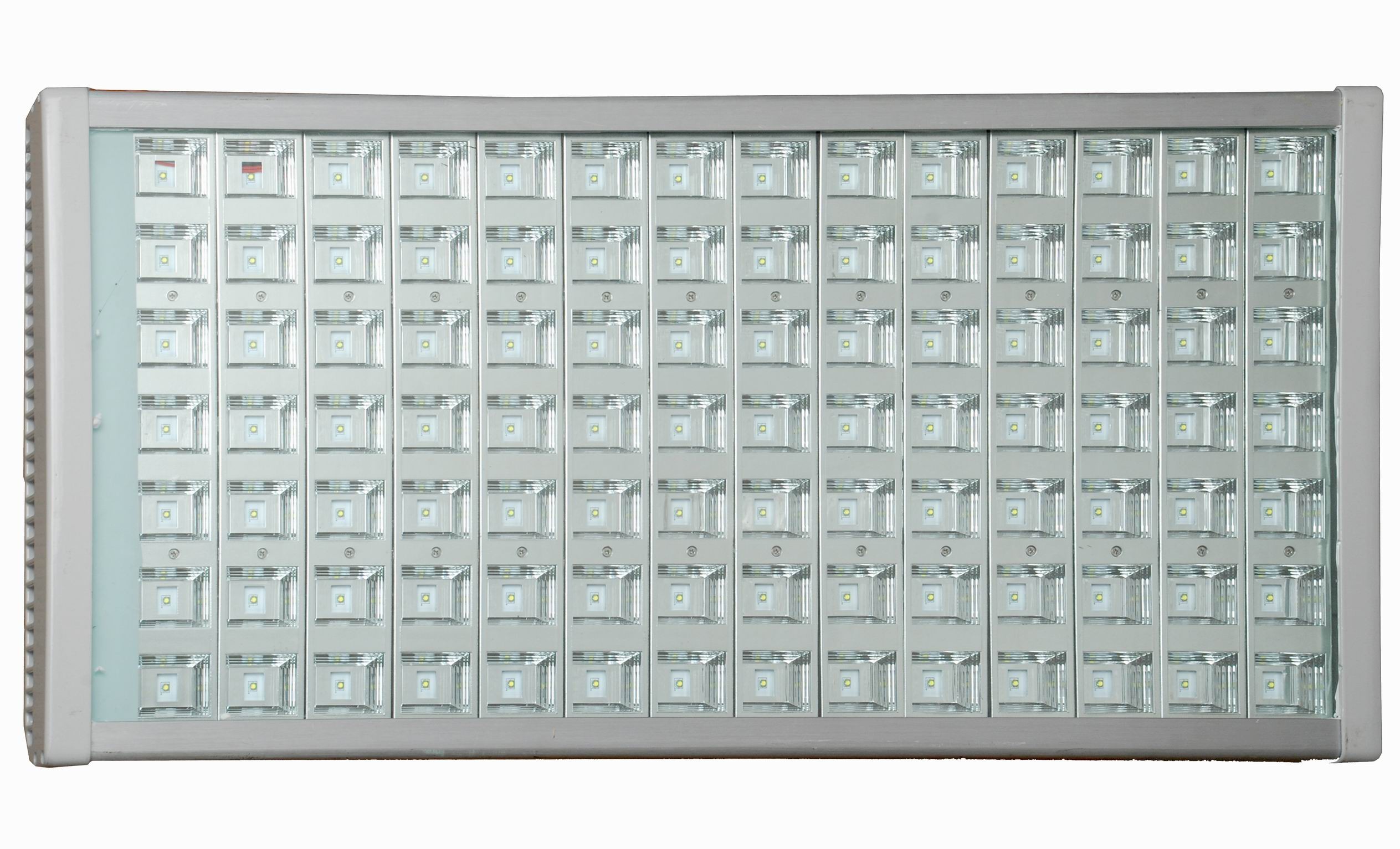

TQ-SF98 (Square) LED High Power Flood Tunnel Light and LED Flood Light 136W
|
LED Source
|
CREE 1W LED
|
Replacement
|
300W - 500W for Traditional Lamp Lights
|
LED Quantity
|
98 PCS
|
LED Luminous Efficiency
|
107-122 lm/W
|
Lamp Total Power
|
136W
|
Power Efficiency
|
> 86%
|
Lamp Total Luminous Flux
|
9,000 lm (Tj=60℃,Ta=25℃)
|
Illumination and Effective area
|
Illumination Effective area
|
Color Rendering Index (CRI)
|
Ra >75
|
|
Warm White: 2600-3700K
|
Color Temperature (CCT)
|
Cool White: 3700-5000K
|
|
Pure White: 5000-6500K
|
Beam Angle
|
Horizontal Axis: 100°,Vertical Axis: 90°
|
Light Distribution Curve/Beam Pattern
|
Asymmetric/ Rectangular Beam
|
Input Voltage
|
85-300V AC
|
Frequency Range
|
50 - 60 Hz
|
Power Factor (PF)
|
≥0.95
|
Total Harmonic Distortion (THD)
|
<20%
|
Storage Temperature
|
-40℃ - +80℃
|
Working Environment
|
-40℃ - +50℃; 10% - 95% RH
|
Working Lifetime
|
> 50,000 hours
|
IP Rating
|
IP65
|
Lamp Body Material Aluminium
|
Alloy and Strengthened Glass
|
Net Weight
|
18.5 kgs
|
Gross Weight
|
19.9 kgs
|
Product Dimension (mm)
|
744(L) x 331(W) x 224(H)
|
Package Size (mm)
|
796(L) x 385(W) x 250(H) (1 PC)
|
