Model No.
|

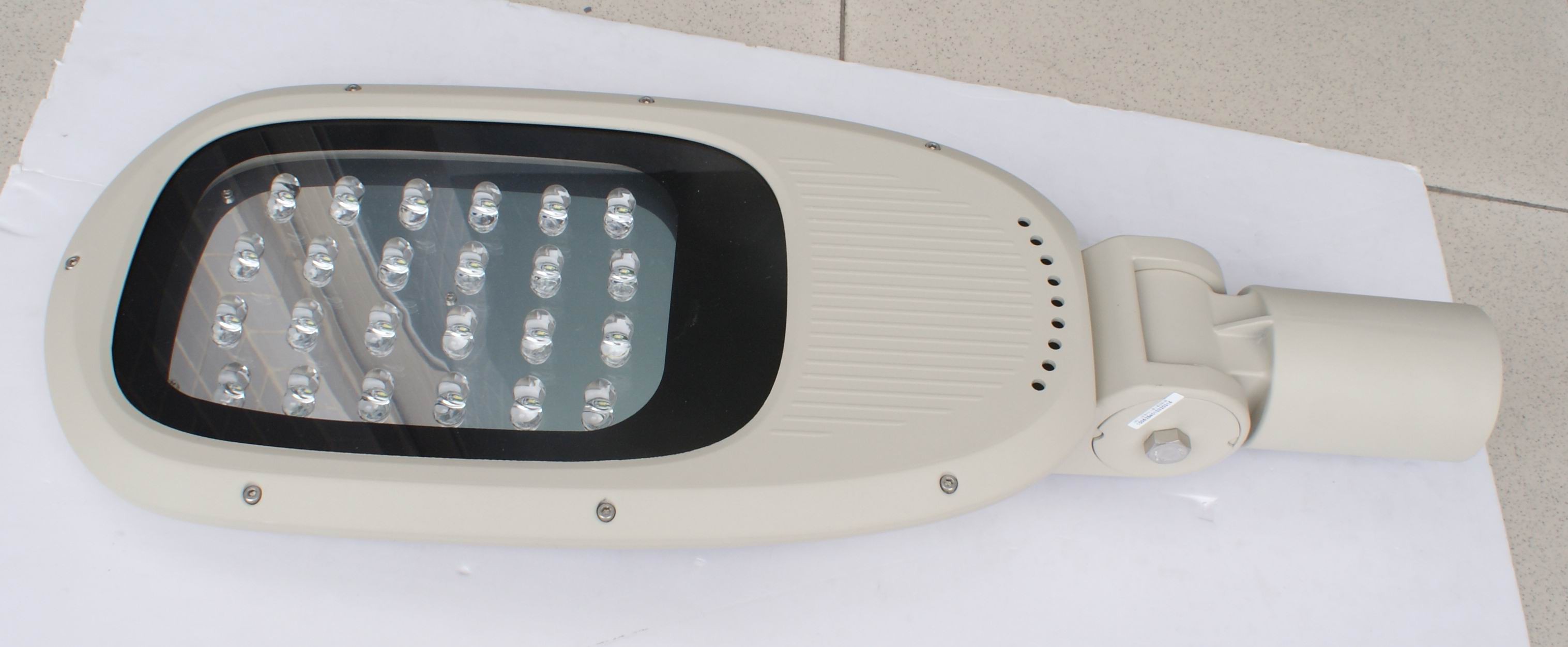

TQ-SM25 LED Street Lights (USA Technology) 30W
|
Replacement
|
70W - 125W for High Pressure Sodium Lamp
|
LED Light Source
|
24 × 1W CREE LED
|
Certifications
|
UL, CE (EMC), CE (LVD), RoHS |
LED Luminous Efficiency
|
107-122 lm/w
|
Lamp Total Power
|
30W
|
Power Efficiency
|
> 85%
|
Lamp Total Luminous Flux
|
> 2,200lm
|
Lamp Luminous Efficiency
|
> 75lm/w
|
Average lllumination and Effective Area
|
4M Height
|
13m×5m ≥29LUX
|
6M Height
|
20m×8m ≥16LUX
|
8M Height
|
26m×10m ≥10LUX
|
Color Rendering Index(CRI)
|
Ra>75
|
Color Temperature(CCT)
|
Cool white: 5000-6500K
Pure white: 4000-5000K
Warm white: 2700-3500K
|
Beam Angle
|
Horizontal Axis:120°
Vertical Axis:60°
|
Light Distribution Curve(Beam Pattern)
|
Asymmetric (Bat Wing) / Rectangular Beam
|
Input Voltage
|
85-300V AC ; 12V DC/ 24V DC
|
Frequency Range
|
50-60Hz
|
Power Factor(PF)
|
> 0.95
|
Total Harmonic Distortion(THD)
|
< 20%
|
Storage Temperature
|
－40℃--+80℃
|
Working Environment
|
－40℃--+50℃; 10%-95%RH
|
Junction Temperature(Tj)
|
60℃±10%(ta=25℃)
|
Light Body and Lampshade Material
|
Aluminum Alloy and PC
|
Working Lifetime
|
> 50,000hrs
|
IP Rating
|
IP66
|
Net Weight
|
6.3kg
|
Gross Weight
|
7.3kg
|
Package Size(mm)
|
700(L)×300(W)×250(H) (1PC)
|
