Model No. |

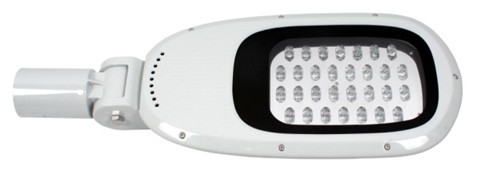

TQ-SM30 LED Streetlight 38W |
Replacement |
75-150W High Pressure Sodium Lamp |
LED Light Source |
30 × 1W CREE LED |
Certifications |
UL, CE (EMC), CE (LVD), RoHS |
LED Luminous Efficiency |
107-122 lm/w |
Lamp Total Power |
38W |
Power Efficiency |
> 85% |
Lamp Total Luminous Flux |
> 2,500lm |
Lamp Luminous Efficiency |
> 75lm/w |
Average lllumination
and Effective Area
|
4M Height |
6M Height |
8M Height |
|
13m×5m ≥32LUX |
20m×8m ≥18LUX |
26m×10m ≥12LUX |
|
Color Rendering Index(CRI) |
Ra>75 |
Color Temperature(CCT) |
Pure white: 5000-6500K
Cool white: 4000-5000K
Warm white: 2700-3500K |
Beam Angle |
Horizontal Axis:120°
Vertical Axis:60° |
Light Distribution Curve(Beam Pattern) |
Asymmetric (Bat Wing) / Rectangular Beam |
Input Voltage |
85-300V AC ; 12V DC/ 24V DC |
Frequency Range |
50-60Hz |
Power Factor (PF) |
> 0.98 |
Total Harmonic Distortion (THD) |
< 20% |
Storage Temperature |
－40℃--+80℃ |
Working Environment |
－40℃--+50℃; 10%-95%RH |
Junction Temperature (Tj) |
60℃±10%(ta=25℃) |
Light Body and Lampshade Material |
Aluminum Alloy and PC |
Working Lifetime |
> 50,000hrs |
IP Rating |
IP66 |
Net Weight |
6.5kg |
Gross Weight |
7.5kg |
Product Size (mm) |
646 x 242 x 87 |
Package Size(mm) |
646(L)×242(W)×87(H) (1PC) |
