Experience The Highest Quality LED Products From TQ LEDS

As an OEM Manufacturer,we adhere to production quality control and deliver quality products you can count on!

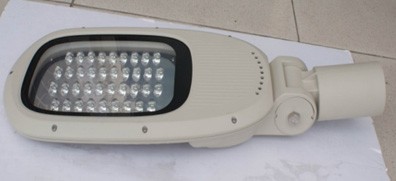

TQ-SM40 LED Highways and Major Trunk Roads Street Lights 48W
TQ-SM40 LED Highways and Major Trunk Roads Street Lights 48W

More Views




































Model No.

TQ-SM40 LED Street Lights (USA Technology) 48W

LED Street Light Source

38 pcs × 1W CREE LED

Replacement

100W - 220W for High Pressure Sodium Lamp

Lamp Power

48W

Power Factor

> 0.98

Lamp Total Luminous Flux

>3,600 lm

Dimension:

L700 x W300 x H250

Characteristics:



  • More than 70% energy saving

  • Our products come with the latest, most advanced and quality assured LED Technology that combine styling and safety.

  • 4x6 LED display module design, easy for maintenance

  • Original American CREE LED LED used

  • Universal input voltage: 85-300v AC

  • Second time energy saving by light control and time-phase power control

  • High quality power supply, reliable and stable, automatically reduce current against high working temperature

  • Unique optical design, rectangular beam, suitable for roadway illumination


Main Technology Index:

















































































































Model No. TQ-SM40 LED Street Lights (USA Technology)  48W
Replacement 100W - 220W for High Pressure Sodium Lamp
LED Light Source 38 × 1W CREE LED
Certifications  UL, CE (EMC), CE (LVD), RoHS
LED Luminous Efficiency 107-122 lm/w
Lamp Total Power 48W
Power Efficiency > 85%
Lamp Total Luminous Flux > 3,600lm
Lamp Luminous Efficiency > 75lm/w














Average lllumination
and Effective Area
 4M Height
6M Height
8M Height














13m×5m ≥45LUX
20m×8m ≥30LUX
26m×10m ≥15LUX

Color Rendering Index(CRI) Ra>75
Color Temperature(CCT) Pure white: 5000-6500K
Cool white: 4000-5000K
Warm white: 2700-3500K
Beam Angle Horizontal Axis:120°
Vertical Axis:60°
Light Distribution Curve(Beam Pattern) Asymmetric (Bat Wing) / Rectangular Beam
Input Voltage 85-300V AC ; 12V DC/ 24V DC
Frequency Range 50-60Hz
Power Factor (PF) > 0.98
Total Harmonic Distortion (THD) < 20%
Storage Temperature －40℃--+80℃
Working Environment －40℃--+50℃; 10%-95%RH
Junction Temperature (Tj) 60℃±10%(ta=25℃)
Light Body and Lampshade Material Aluminum Alloy and PC
Working Lifetime > 50,000hrs
IP Rating IP66
Net Weight 6.7kg
Gross Weight 7.7kg
Package Size(mm) 700(L)×300(W)×250(H) (1PC)
