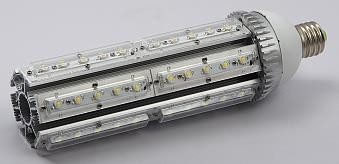

TQ-FLD60W-6Side LED Street Light Bulb Replacement Of Traditional Lamp Bulb 60W

More Views

Features of LED Street Light Bulb 60w


1.  16W-72W LED High Power Available (USA Bridgelux Technology)


2.  Compatible with E40/E27 socket;


3.   Low power consumption; high efficiency of complete lamp (Lens design);


4    Unique big fin heat sink design;


5.   CE/EMC, UL, RoHS approved Internal Builtin or External Driver;





Technical parameters


























































































LED Power



60W Six-Side Lighting



LED Qty



10*6 pcs



Beam Angle


360 º

Input voltage



AC85 - 265V, DC12V/24V



LED Technology Chip



USA Bridgelux High Power Chip



LED Efficiency



>110lm/w



Lamp Lumen



5400lm - 6000lm



LED Driver



Internal Built-in



Total Harmonic



<8%



Power Factor



>0.8



Power efficiency



>80%



Color teperature



2700-3200K; 4000-5500K; 6000-6500K;



Color Rendering Index



Ra>80



Socket



E27 or E40



Light Design



LED + Light distribtion from reflecting shade



Junction temperature



70 ° C ± 1 0% ( Ta= 25 ° C )



Working temperature



- 40°C to + 55 °C



IP Rank



IP54



Working lifespan



>50, 000hrs



Product Dimension



Φ103*370mm



Certificates



CE,  RoHS, UL






Applications


Widely used for Government light decoration projects, Commerial street lighting, Shopping malls, Gardens, Parks, Street lighting, Residentials street lighting, etc.
