Experience The Highest Quality LED Products From TQ LEDS

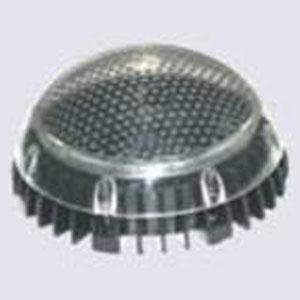

TQ-PXL-RZ120 LED High Power Pixel Lights DIP 120mm Type

More Views

LED PIXEL LIGHTS node can be given a separate address. This allows for any PIXEL node to change color at any time. Assembled in small plastic housing, each PIXEL node can be transparent or semi-transparent, dome or mirror encasing. The PIXEL LIGHTS nodes are arrayed in an appropriate spacing along the 3 wire cable. Spacing can be customized according to projects requirements.


 Applications



  • Unique Video walls.

  • Concerts and Entertainment industry.

  • Perimeter building lighting (see below).

  • For indoors & outdoors use.

  • Exhibitions and trade shows.


 Features



  • Super bright LED lights.

  • Very Bright; up to 20 lumens per pixel.

  • IP 65 protection rating.

  • Operating temperature: -35C ~ 50 0C.

  • Long life span of LED lights, 50,000 hours.

  • RGB Color changing via controller.

  • Easy setup and compact storage.


LED PIXEL LIGHTS node can be given a separate address. This allows for any PIXEL node to change color at any time. Assembled in small plastic housing, each PIXEL node can be transparent or semi-transparent, dome or mirror encasing. The PIXEL LIGHTS nodes are arrayed in an appropriate spacing along the 3 wire cable. Spacing can be customized according to projects requirements.





Applications



  • Unique Video walls.

  • Concerts and Entertainment industry.

  • Perimeter building lighting (see below).

  • For indoors & outdoors use.

  • Exhibitions and trade shows.





Features



  • Super bright LED lights.

  • Very Bright; up to 20 lumens per pixel.

  • IP 65 protection rating.

  • Operating temperature: -35C ~ 50 0C.

  • Long life span of LED lights, 50,000 hours.

  • RGB Color changing via controller.

  • Easy setup and compact storage.





Product Specifications:




















































LED Light Source



DIP DIA 5 x 54 Pcs (5W) LED Epistar



Power Efficiency



≥85%



Input Voltage



DC 24V



CRI



Ra≥75



Size



DIA120 x 65mm



Power Factor(PF)



≥ 0.9



Beam Angle



60°



Luminous Decay



<1%(1000hrs)



Light Efficacy/W



70~80lm/W



Colour



RGB or Monocolor



Lumens



 350 - 370lm



Life span



≥30000Hr



Material



Aluminum Base, PC Cover,  Transparent Honeycomb or Cream White



Weight(g)



400



IP Rate



IP65
