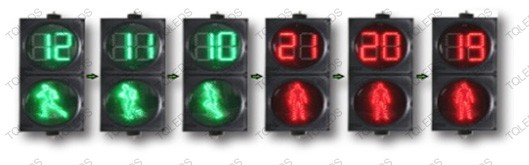

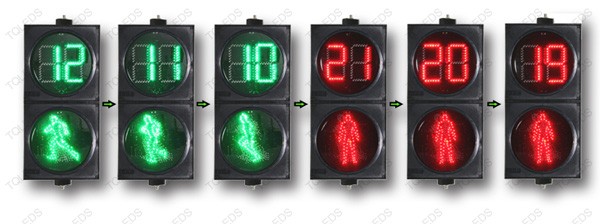

SRX 300-3-D2A LED Dynamic Pedestrian Traffic Light with Countdown Timer

SRX 300-3-D2A LED Dynamic Pedestrian Traffic Light with Countdown Timer

More Views

Model	Light color	Quantity of LED (pcs)	Light intensity (cd)	Wavelength (nm)	Visual angle(°)		Consumed power (W)	Outer size (mm)
Model	Light color	Quantity of LED (pcs)	Light intensity (cd)	Wavelength (nm)	Left/right	Alow	Consumed power (W)	Outer size (mm)
TQ-SRX 300-3-D2A		84	≥4000/㎡	625±5	30	10	≤1	700×350×110
		84	≥4000/㎡	505±2	30	10	≤2
		75	≥4000/㎡	625±5	30	10	≤5
		314	≥4000/㎡	505±2	30	10	≤10

Characteristics:

Excellent appearance & visibility

Our products come with the latest, most advanced and quality assured LED Technology that combine styling and safety.

High efficiency and high brightness LED Light source, larger visual angle

Long life of 70,000 hours plus

Up to 90% energy saving over incandescent

Exclusive optical lensing, good color uniformity

Multi-ply sealed, water & dust resistant

Up to national standard GB-14887-2003

CE (EN12368) approved & RoHS compliant

Apply US brand chip: HP for Red, Cree for Green

Operating Voltage: AC 110V 220V 50/60 Hz, Outside Material: PC

Main Technology Index:

Model	Light color	Quantity of LED (pcs)	Light intensity (cd)	Wavelength (nm)	Visual angle(°)		Consumed power (W)	Outer size (mm)
Model	Light color	Quantity of LED (pcs)	Light intensity (cd)	Wavelength (nm)	Left/right	Alow	Consumed power (W)	Outer size (mm)
TQ-SRX 300-3-D2A		84	≥4000/㎡	625±5	30	10	≤1	700×350×110
		84	≥4000/㎡	505±2	30	10	≤2
		75	≥4000/㎡	625±5	30	10	≤5
		314	≥4000/㎡	505±2	30	10	≤10
