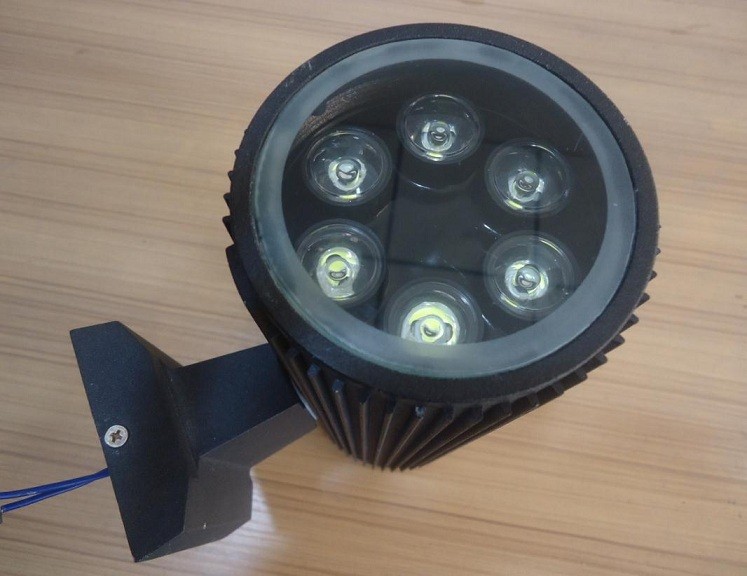

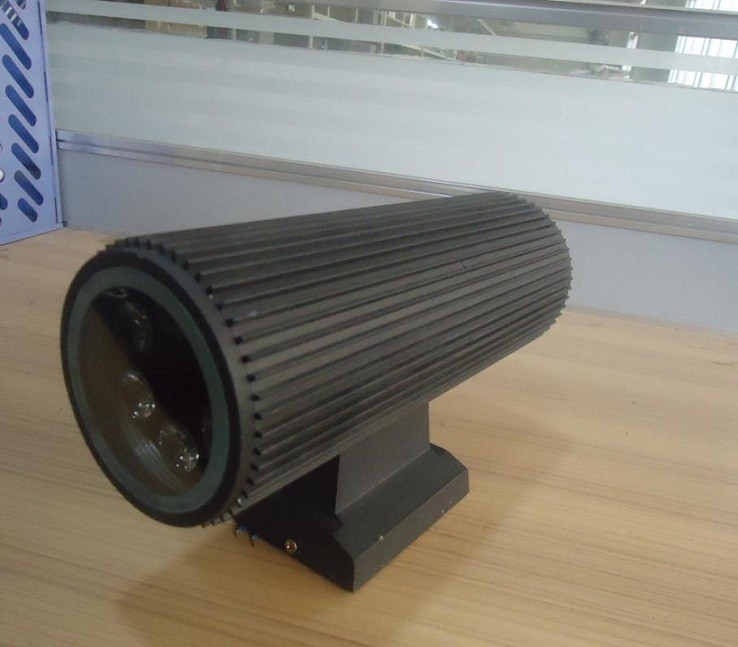

TQ-WL12x1-B LED High Power Outdoor Wall Light 12W

More Views

Key Feartures:


1.  The shell is of high quality aluminum, light body refined appearance, excellent heat dissipation.

2.  Drive mode is constant current drive, so that stable and reliable lighting

3.  LED Style:1w/pcs High Power LED.

4.  IP Rank:  IP65 water-proof.


Technical Specifications:

Product Name LED High Power Wall Light 12*1W (6*1W x 2)

Input Voltage AC85~265V

Output Luminous 1200 LM at 100 lm/w

LED Type 6*1W X 2

Installation Surface mounted  Comes with 2 screws fixed on the surface of the wall; easy to install

LED Quantity 12 x 1W High Power LED

Colors WW/CW/PW

Housing material Aluminum alloy lens with toughened glass cover

Operating temperature -30 to 55°C

Operating humidity <85% RH

Lifespan 50,000 hours

Size 90* 260mm

Net Packaging Weight 2.3kg

Certifications CE and RoHS

Key Feartures:


1.  The shell is of high quality aluminum, light body refined appearance, excellent heat dissipation.

2.  Drive mode is constant current drive, so that stable and reliable lighting

3.  LED Style:1w/pcs High Power LED.

4.  IP Rank:  IP65 water-proof.


Technical Specifications:

Product Name LED High Power Wall Light 12*1W (6*1W x 2)

Input Voltage AC85~265V

Output Luminous 1200 LM at 100 lm/w

LED Type 6*1W X 2

Installation Surface mounted  Comes with 2 screws fixed on the surface of the wall; easy to install

LED Quantity 12 x 1W High Power LED

Colors WW/CW/PW

Housing material Aluminum alloy lens with toughened glass cover

Operating temperature -30 to 55°C

Operating humidity <85% RH

Lifespan 50,000 hours

Size 90* 260mm

Net Packaging Weight 2.3kg

Certifications CE and RoHS
