Features
1. Patented design for heat dissipation to ensure life of light source up to 50,000 hours.
2. Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.
3. Die-casting aluminum housing, with anti-static and anti-corrosion coating, high explosion-proof degree of flameproof type; dust-proof, waterproof; lens made of bulletproof PC which is thermal resistance, corrosion resistance, high light transmission.
4. Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image.

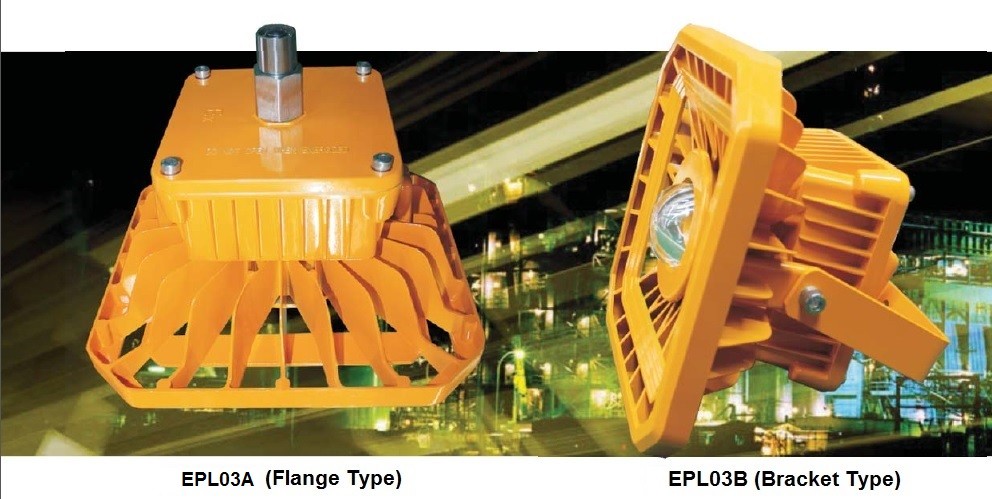

5. Beautiful appearance, several types of installation methods available.
Applications
Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base, etc. Zone I and Zone ⅡHazardous Locations, Zone 20, Zone 21, Zone 22 and Ⅱ A, Ⅱ B, Ⅱ C explosive gas atmosphere.
Technical Parameters
Item Name
|
LED Explosion Proof Light
|
LED Power
|
60W / 80W / 100W / 120W
|
Input Voltage
|
AC 95-265V or 24V DC
|
Frequency
|
50Hz (applied for 47-63 Hz)
|
Beam Angle
|
60°/ 90° / 120° / 140°
|
Explosion-proof Grade
|
Ex d II B T5, DIP A20 TA, T6
|
Corrosion-proof Grade
|
WF2
|
IP Grade
|
IP66
|
Power Factor
|
>0.95
|
Total Harmonic Current
|
<15%
|
Lamp Efficiency(%)
|
≥90%
|
Color Temperature(K)
|
Warm white:2700-4000K; Pure white: 5000-6500K
|
Junction Temperature(TJ)
|
<65°C
|
Color Rendering Index (CRI)
|
Ra﹥70
|
Light Effect
|
﹥80lm/W
|
Ambient Environment
|
Temperature: -30°C—55°C; Humidity: 10-90%RH (25°C)
|
Storage Temperature
|
-40°C-60°C
|
Lifespan
|
﹥50000Hs
|
Material
|
Aluminum Alloy
|
Installation Height
|
4~10m (flood light) / 10~30m (project light)
|
Dimension(mm)
|
300×300×227
|
Net Weight
|
6.5Kg
|
