Features:
1. Increased safety type of explosion proof grade, 95-265V alternating current and 24V direct current for option;
2. Integrated type of tube, adopt SMD LED on aluminum base, make aluminum base completely attached to heat sink which composed of lamp body to make sure excellent heat dissipation, lead to long lifetime.
3. Adopt silicon encapsulated sealed power supply whose body made of aluminum alloy, put it inside of aluminum body and closed attached to heat sink to make sure heat dissipated from power supply.
4. Cover made of high quality PC which enjoy high-strength, impact resistant, hot resistant, corrosion-resistant.
5. Completely sealed to waterproof, dust-proof, corrosion-resistant.

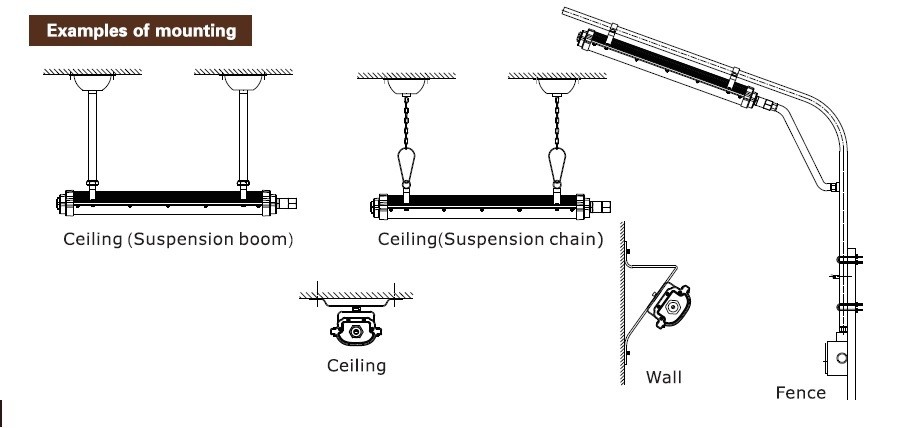

6. Smart appearance, equip with two mounting brackets，it can be installed easily.
Technical Parameters
LED Power
|
20W
|
40W
|
60W
|
Input Voltage
|
220V AC(applied for 95-265V)
|
Frequency
|
50Hz/60Hz
|
Explosion-proof Grade
|
Ex emb IIC T6 / DIP A20 TA, T6
|
Corrosion-proof Grade
|
WF2
|
IP Grade
|
IP66
|
Light Effect
|
≥90lm/W
|
Beam Angle
|
120°
|
Power Factor
|
≥0.90
|
Cable Entry
|
Φ8～Φ10mm
|
Installation Height
|
2～3m
|
3～5m
|
3～6m
|
Illuminance at 3m
|
75LX
|
100 LX
|
130 LX
|
Ambient Environment
|
Temperature:-30°C-55°C; Humidity:10-90%RH(25°C)
|
Storage Temperature
|
-40°C-60°C
|
Lifespan
|
﹥50000Hs
|
Material
|
Aluminum Alloy&PC
|
Dimension (20W)
|
L850*W136*H91.5mm
|
Dimension (40W)
|
L1295*W136*H91.5mm
|
Dimension (60W)
|
L1295*W136*H91.5mm
|
Net Weight
|
20W: 4.5KG 40W: 6.9KG and 60W: 6.9Kg
|
